Airline WG-5015A
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 300103
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BQ7A 6AT8 6CB6 6CB6 6CB6 6U8 12BY7 6U8 6AU6 6BN6 6AQ5 6BY6 12AU7 6W6GT 6SN7GTB 6BQ6GA 6AX4GT 1B3GT 5U4GB 21ATP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline WG-5015A - Montgomery Ward & Co. Wards,
- Shape
- Console with any shape - in general
- Notes
-

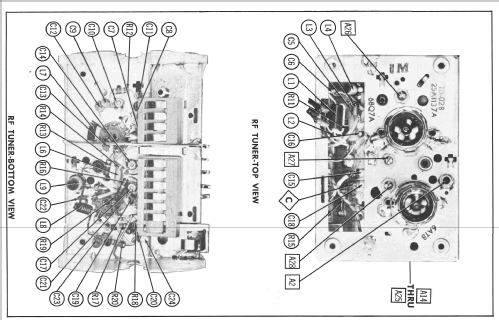

Montgomery Airline model 5015A is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, equipped with VHF tuner 25A1137 and picture tube 21ATP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 319 Folder 2 dated 6-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
