• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1955

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 276837

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AT6 50C5 35W4

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Airline GAA-1000A - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 17.75 x 8.5 x 14.5 inch / 451 x 216 x 368 mm

• Notes

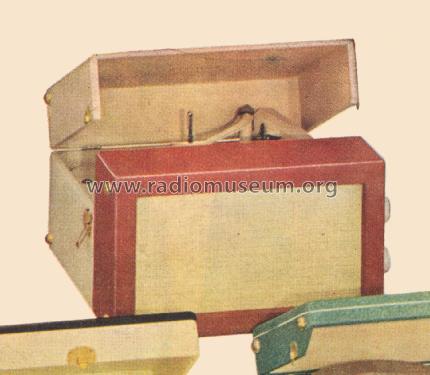

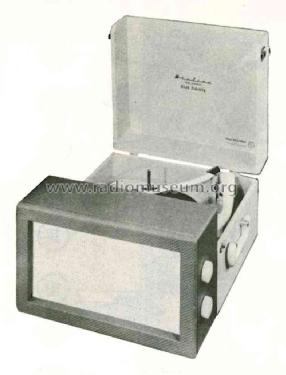

• AC Operated Phono Amplifier With 3 Speed Automatic Record Changer.

  Same model but with built-in radio: model Airline 990.

• Price in first year of sale
• 66.50 $

• Literature/Schematics (1)

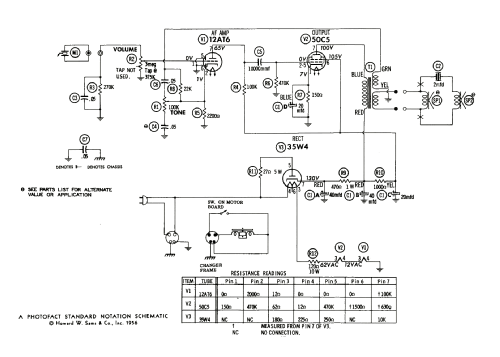

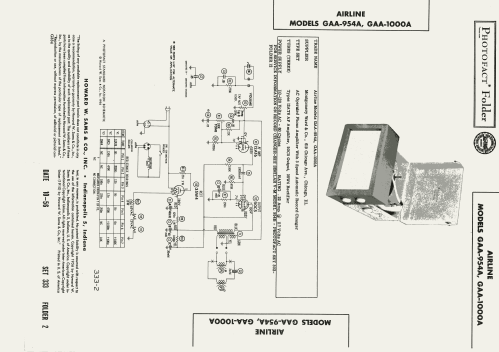

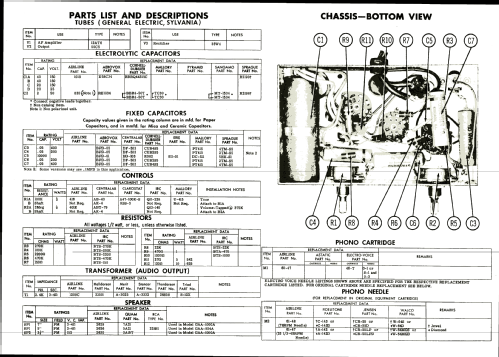

• Photofact Folder, Howard W. SAMS (Set 333 Folder 2 dated 10-56)

• Literature/Schematics (2)

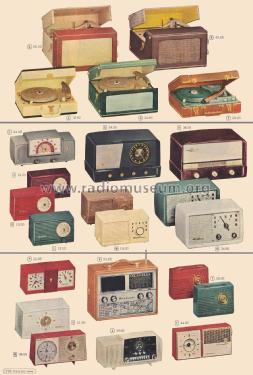

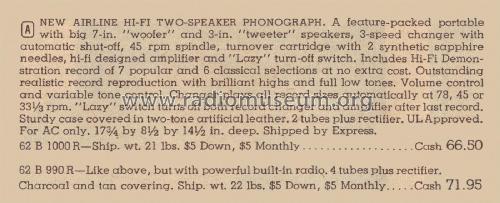

• Montgomery Ward Catalogs (Wards, Airline) (1955, page 716 & 717.)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
