62-702 Order= P462 B 702 Series A Issue B

62-702 Order= P462 B 702 Series A; Montgomery Ward & Co (ID = 608807) Radio
62-702 Order= P462 B 702 Series A; Montgomery Ward & Co (ID = 1882245) Radio 62-702 Order= P462 B 702 Series A; Montgomery Ward & Co (ID = 1882246) Radio
62-702 Order= P462 B 702 Series A; Montgomery Ward & Co (ID = 1882247) Radio 62-702 Order= P462 B 702 Series A; Montgomery Ward & Co (ID = 2301673) Radio

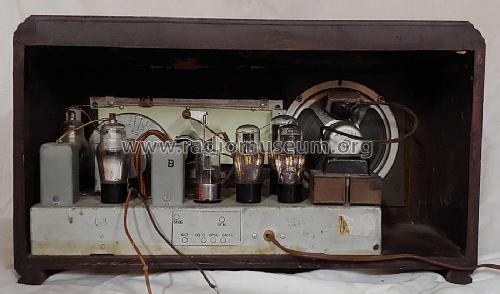

62-702 Order= P462 B 702 Series A; Montgomery Ward & Co (ID = 2301674) Radio 62-702 Order= P462 B 702 Series A; Montgomery Ward & Co (ID = 2301675) Radio
Use red slider bar for more.
62-702 Order= P462 B 702 Series A; Montgomery Ward & Co (ID = 1882245) Radio
Montgomery Ward & Co: 62-702 Order= P462 B 702 Series A [Radio] ID = 1882245 1400x1056
Select picture or schematic to display from thumbnails on the right and click for download.
For model 62-702 Order= P462 B 702 Series A Issue B, Montgomery Ward & Co. (Wards, Airline); Chicago, IL:
Scan from catalog Montgomery Ward, 1939, page 565A.

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6K8G 6K7 6Q7G 6P5G 6U5 6AC5G 5Y3G
Main principle Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out 1.6 W (unknown quality)
from Radiomuseum.org Model: 62-702 Order= P462 B 702 Series A [Issue B] - Montgomery Ward & Co. Wards,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 20 x 11.5 x 8.5 inch / 508 x 292 x 216 mm
Notes BC (535-1720 kHz) and SW (5.65-18.3 MHz) bands. Tuning eye.
Price in first year of sale 22.95 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 10 = 1939 and before
Mentioned in Rider's 10-41, 10-42
Literature/Schematics (4) Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1939, No.130, page 565A.)
