• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1955–1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81654

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BF6 12BA6 12AV6 35C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117V = 110 -125 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

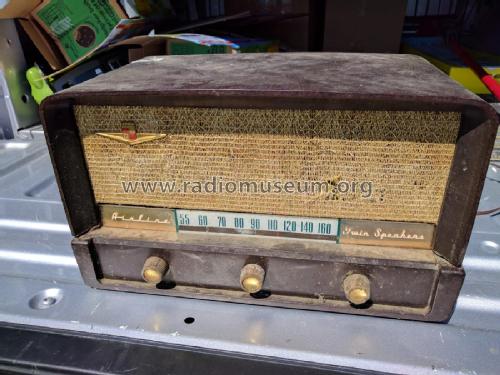

• Model: Airline WG-1635A - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15.25 x 8.5 x 8.25 inch / 387 x 216 x 210 mm

• Notes

• The Montgomery Model Airline WG-1635A is an AC/DC Operated 6 Tube AM Heterodyne Receiver. Two 4" x 6" PM elliptical speaker.



• Price in first year of sale
• 34.95 $

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 16, 1956

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 2-56, Set 306, Folder 2)

• Literature/Schematics (2)

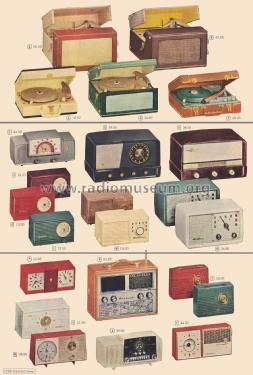

• Montgomery Ward Catalogs (Wards, Airline) (1955, page 716 & 717. Fall/Winter 1956/57, page 787.)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
