Ûnost' {Юность} [Junost ] 406WE

Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 626721) Television

Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 626723) Television

Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 626729) Television

Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 626733) Television

Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 626737) Television

Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 626738) Television

Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 626739) Television

Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 626740) Television

Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 626741) Television
Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 2563788) Television Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 1447666) Television
Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 396692) Television Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 396693) Television
Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 396691) Television Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 1447668) Television
Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 1534213) Television Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 1626597) Television

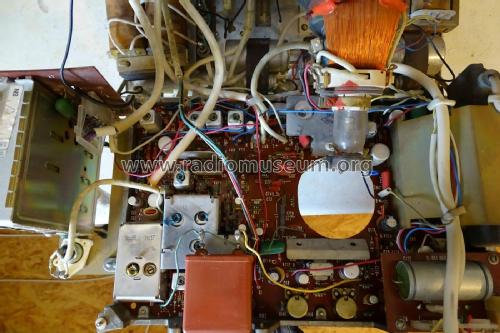

Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 2029152) Television Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 2029154) Television
Use red slider bar for more.

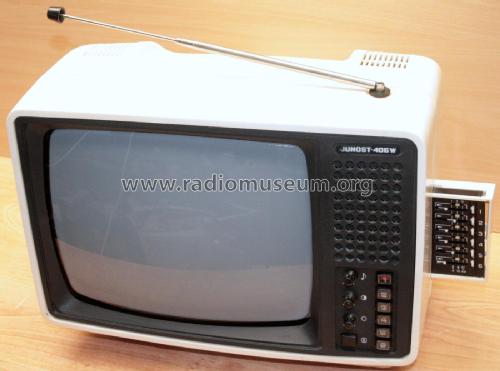

Ûnost' {Юность} [Junost ] 406WE; Moscow Radio (ID = 2563788) Television
Moscow Radio: Ûnost' {Юность} [Junost ] 406WE [Television] ID = 2563788 1400x1040
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ûnost' {Юность} [Junost ] 406WE, Moscow Radio engineering Works

Country:  Soviet Union
Manufacturer / Brand:  Moscow Radio engineering Works
Year: 1987 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 31ЛК4Б
Semiconductors (the count is only for transistors) 32:
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 220; 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.75 W (unknown quality)
from Radiomuseum.org Model: Ûnost' {Юность} [Junost ] 406WE - Moscow Radio engineering Works
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 307 x 392 x 305 inch / 7798 x 9957 x 7747 mm
Notes Der S/W- Fernsehempfänger Junost 406WE ist ein tragbares Gerät mit 6 Programmspeichertasten. Der Empfangsbereich umfasst VHF und UHF nach CCIR B/G. Die Stromversorgung ist über Netz oder Akku mit 12 Volt möglich. Exportgerät mit deutscher Beschriftung.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data -- Collector info (Sammler)
Literature/Schematics (1) Importgeräte- CD Funkverlag B. Hein

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Moscow Radio engineering Works
Here you find 23 models, 21 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
