• Country
• Soviet Union

• Manufacturer / Brand
• Moscow Radio engineering Works

• Year
• 1973 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 114818

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 127; 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

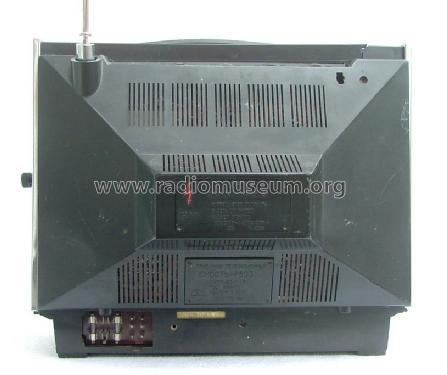

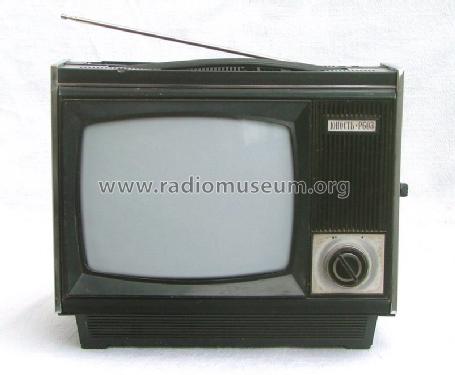

• Model: Ûnost' {Юность} [Junost] R603 {Р603} - Moscow Radio engineering Works

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 240 x 214 mm / 12.2 x 9.4 x 8.4 inch

• Notes
• B/W TV with OIRT VHF drum tuner; Channel R-1...R-12, 183 × 140 mm screen.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Mentioned in
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Radio- es TV- kapcsolások, 1975-77

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
