• Country
• Soviet Union

• Manufacturer / Brand
• Moscow Radio engineering Works

• Year
• 1954

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 83803

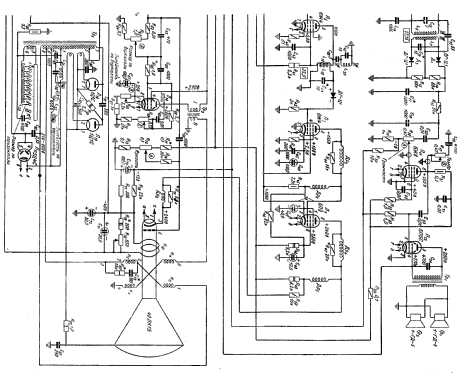

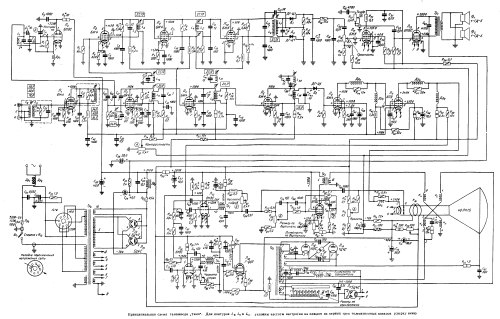

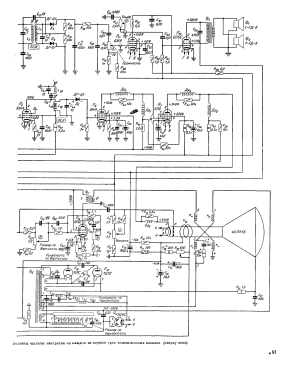

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6Ж4 6Н9С 6Ж4 6Ж4 6Ж4 6Ж4 6П9 6Ж4 6Ж4 6Ж8 6Ж8 6П6С 6Н8С 6П6С 6Н8С Г-807 5Ц4С 1Ц1С 1Ц1С 5Ц4С 5Ц4С 40ЛК1Б

• Number of Transistors

• Semiconductors
• ДГ-Ц1 ДГ-Ц1 ДГ-Ц1

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 12.6 cm = 5 inch

• Material
• Wooden case

• from Radiomuseum.org

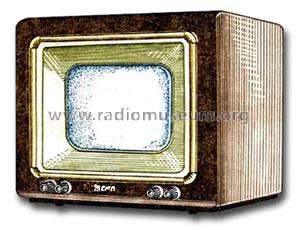

• Model: Temp {Темп} - Moscow Radio engineering Works

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 570 x 470 mm / 20.5 x 22.4 x 18.5 inch

• Notes

• Bildröhrentyp 40LK1B; 5-Kanal OIRT-VHF-Tuner; auch als Temp 1 bezeichnet;
  Picture Tube 40LK1B; 5 Channel OIRT Standard VHF Tuner; 500 µV Sensitivity; 240 Watt Power Consumption; also called as Temp 1.

  Loudspeakers type 1-ГД-5

• Net weight (2.2 lb = 1 kg)
• 38 kg / 83 lb 11.2 oz (83.7 lb)

• Source of data
• -- Collector info (Sammler)
