808T; Motorola; London (ID = 721107) Car Radio

808T; Motorola; London (ID = 721109) Car Radio
808T; Motorola; London (ID = 1670801) Car Radio 808T; Motorola; London (ID = 1670802) Car Radio
808T; Motorola; London (ID = 1670803) Car Radio 808T; Motorola; London (ID = 1670804) Car Radio
808T; Motorola; London (ID = 1670806) Car Radio
Use red slider bar for more.
808T; Motorola; London (ID = 1670801) Car Radio
Motorola; London: 808T [Car Radio] ID = 1670801 933x320
Select picture or schematic to display from thumbnails on the right and click for download.
For model 808T, Motorola; London:

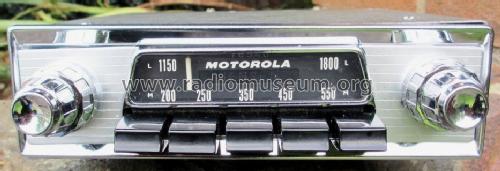

A Motorola 808T car radio. This example is from a 1963 Jensen CV8 and 'Jensen' lights up on the back of the dial when the radio is switched on.

Country:  Great Britain (UK)
Manufacturer / Brand:  Motorola; London
alternative name

Motorola Automotive
Brand
World Radio
Year: 1962 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 7: AF117 AF117 AF117 OC82D OC82D OC26 OC26
Main principle Superhet with RF-stage; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 808T - Motorola; London
Material Metal case
Shape Chassis only or for «building in»
Notes Car radio with push button tuning & push-pull audio stage. VDR protects aerial input.
Source of data -- Schematic
Literature/Schematics (1) Radio And Television Servicing books (R&TVS)

Model page created by Keith Staines. See "Data change" for further contributors.
