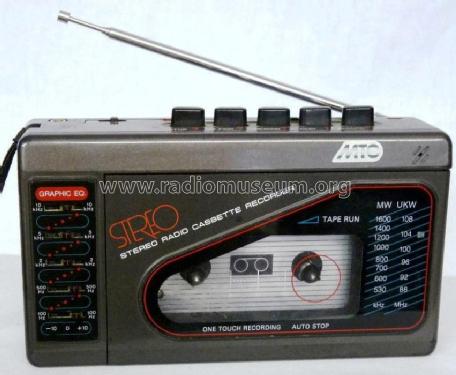

MTO Stereo Radio Cassette Recorder MS-570EQ

MTO Stereo Radio Cassette Recorder MS-570EQ; Unknown - CUSTOM (ID = 625356) Radio MTO Stereo Radio Cassette Recorder MS-570EQ; Unknown - CUSTOM (ID = 625357) Radio
MTO Stereo Radio Cassette Recorder MS-570EQ; Unknown - CUSTOM (ID = 625359) Radio MTO Stereo Radio Cassette Recorder MS-570EQ; Unknown - CUSTOM (ID = 625360) Radio
MTO Stereo Radio Cassette Recorder MS-570EQ; Unknown - CUSTOM (ID = 625361) Radio
Use red slider bar for more.
MTO Stereo Radio Cassette Recorder MS-570EQ; Unknown - CUSTOM (ID = 625356) Radio
Unknown - CUSTOM: MTO Stereo Radio Cassette Recorder MS-570EQ [Radio] ID = 625356 741x644
Select picture or schematic to display from thumbnails on the right and click for download.
For model MTO Stereo Radio Cassette Recorder MS-570EQ, Unknown - CUSTOM BUILT: South Korea (ROK)

Country:  South Korea
Manufacturer / Brand:  Unknown - CUSTOM BUILT: South Korea (ROK)
Year: 1978 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player; Radio with other functions
Power type and voltage Batteries / addl. power jack / 3 x 1,5 / 4,5 Volt
Loudspeaker 2 Loudspeakers / Ø 3.5 cm = 1.4 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: MTO Stereo Radio Cassette Recorder MS-570EQ - Unknown - CUSTOM BUILT: South
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 55 x 75 x 40 mm / 2.2 x 3 x 1.6 inch
Notes Stereo Radio Kasettenrecorder mit Radioteil (MW/UKW), Umschaltung Normal od. Metallkasetten, UKW-Stereo/Mono Schalter, 2 eingebaute Lautsprecher, je 35mm, oder Kopfhörerbetrieb über Klinkenbuchse 3,5mm, 5-fach Grafik Equalizer, Anschluß eines ext. Netzgerätes mit 4,5Volt möglich
Net weight (2.2 lb = 1 kg) 0.367 kg / 0 lb 12.9 oz (0.808 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.



All listed radios etc. from Unknown - CUSTOM BUILT: South Korea (ROK)
Here you find 64 models, 49 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Unknown - CUSTOM: MTO Stereo Radio Cassette Recorder MS-570EQ
Threads: 1 | Posts: 2
Hits: 1242     Replies: 1
motoradio: Is not a Motoradio model.
Dirson Willig
18.Apr.16
  1

Hello all,

this  MTO  ID = 156397 is not a Motoradio model. It is a generic Korean tape model. Here in attach you can see a Broksonic unit.

I have much Motoradio models that was made in Brazil, and this one is not present in the catalog.

In future i will upload models, manuals and photos  from Motoradio Brazil.



Att:

Dirson

Attachments

Mark Hippenstiel
18.Apr.16
  2

Dear Dirson,

thank you, I've moved the model to Korea. I agree that MTO is not "Motoradio".

At the same time, the manufacturer Motoradio has been updated with a few data. I'm looking forward to more models on this maker.

Thanks and kind regards
Mark
