• Country
• Brazil

• Manufacturer / Brand
• Motorádio; São Paulo

• Year
• 1980–1990 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 364365

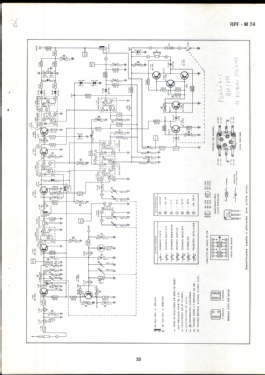

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF255 BF199 BF254 BF254 BF254 BF255 BC548 BC548 BC548 BC328 BC338 BA315 AA119 BB119 1N60 SFE-10.7MA

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RPF-M24 - Motorádio; São Paulo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 170 x 110 x 50 mm / 6.7 x 4.3 x 2 inch

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Volnei Deutschmann. See "Data change" for further contributors.
