• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 191726

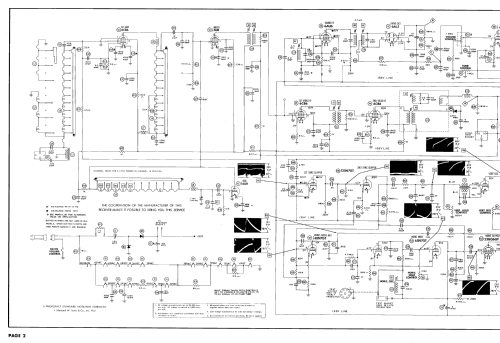

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6CB6 6U8 6CB6 6CB6 6AH6 6AU6 6AL5 6SN7GT 25L6GT 12SN7GT 12BH7 6SN7GT 25BQ6GT 12AX4GT 1B3GT 14HP4F

• Conflicting model year with tube data.
• The model date contradicts tube dates. [ 6U8 (1953)]

• Main principle
• Superhet with RF-stage; ZF/IF 26400/21900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Various materials

• from Radiomuseum.org
• Model: 14P2 Ch= TS-275 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, with any shape - general.

• Notes

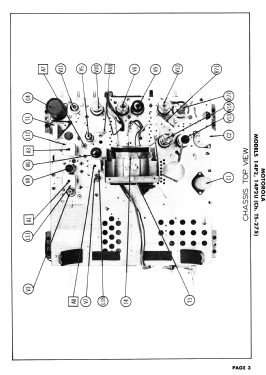

• Motorola model 14P2 is a 14” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis TS-275, VHF tuner 1X710744 and picture tube 14HP4F. 145 W power consumption. TA-78 telescopic atenna.




• Source of data
• -- Original-techn. papers.

• Mentioned in

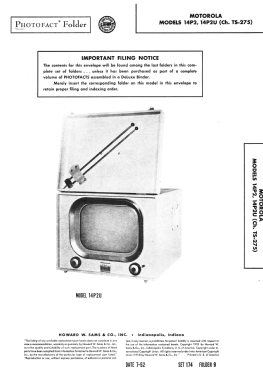

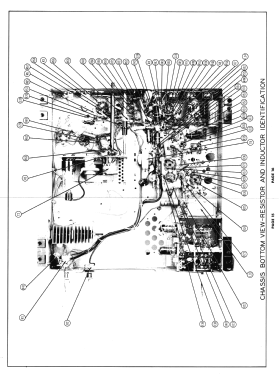

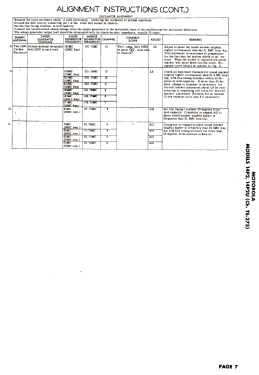

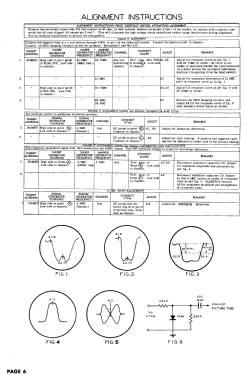

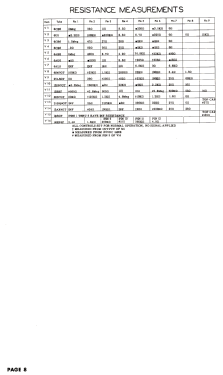

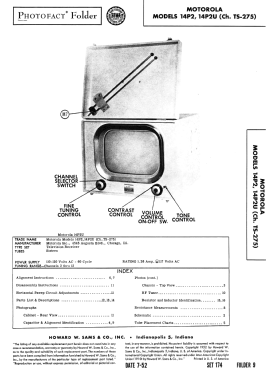

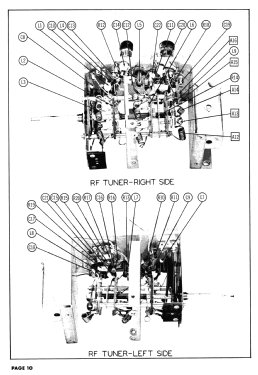

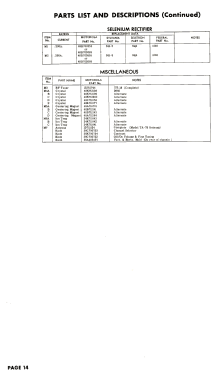

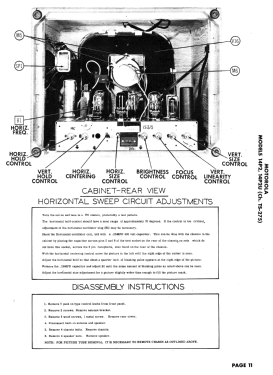

• Photofact Folder, Howard W. SAMS (Set 174, folder 9 dated 7-52)

• Literature/Schematics (1)

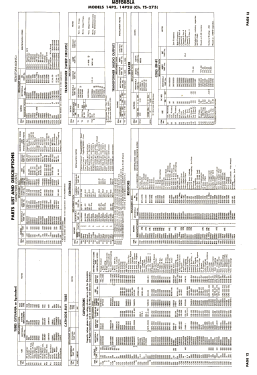

• - - Manufacturers Literature (Motorola Datasheet 68P720311)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 4653 models, 2980 with images and 4153 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
