14P7-1 Ch= TTS-423
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 312510

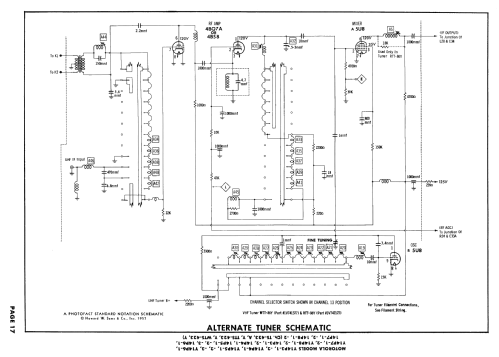

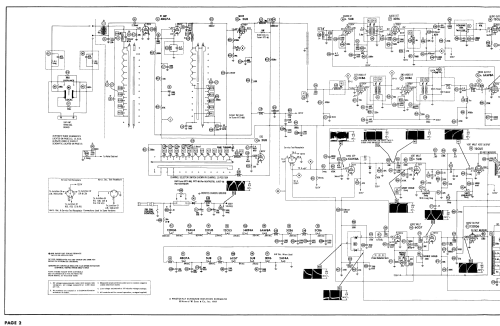

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 14P7-1 Ch= TTS-423 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Motorola model 14P7-1 is a 14" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis TTS-423, VHF tuner RTT-86 and picture tube 14RP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 366 Folder 7 dated 8-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
