For model 17P1-1 Ch= TS-426, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):

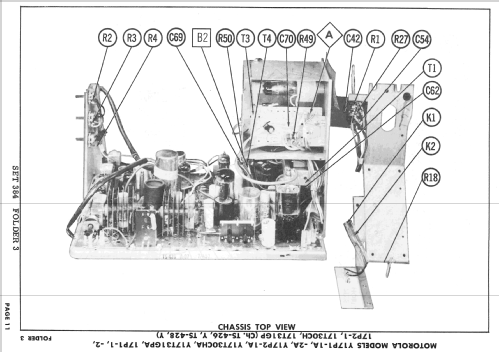

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1957 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: 4BC8 5U8 3BZ6 3BZ6 3CB6 6AW8A 6CG7 3AU6 3AL5 7AU7 5AQ5 7AU7 12W6GT 6CG7 12DQ6 19AU4 3A2 or 3A3 17BZP4
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 17P1-1 Ch= TS-426 - Motorola Inc. ex Galvin Mfg.Co
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes

Motorola model 17P1-1 is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis TS-426, VHF tuner TT-95 and picture tube 17BZP4.

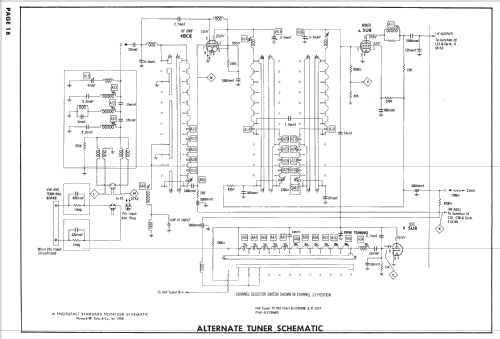

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 384 Folder 3 dated 1-58)

Model page created by Dirk Taekels. See "Data change" for further contributors.
