• Year
  • 1965
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 239993

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 16
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 19BP118BB Ch= DTS-596 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

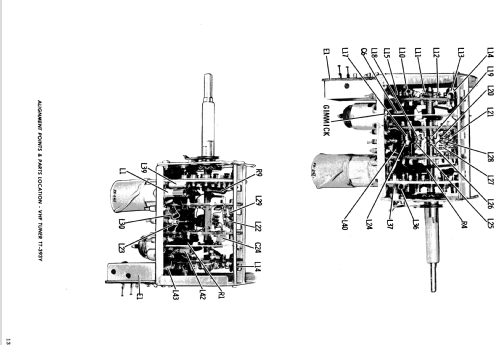

  • The Motorola 19BP118BB is a 19" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis DTS-596, VHF tuner CMTT-393Y, UHF tuner HTT-615 and picture tube 19AEP4, 19ENP4 or 19EGP4. Uses elliptical PM 2.25" x 6.25" speaker.

  • Source of data
  • - - Manufacturers Literature

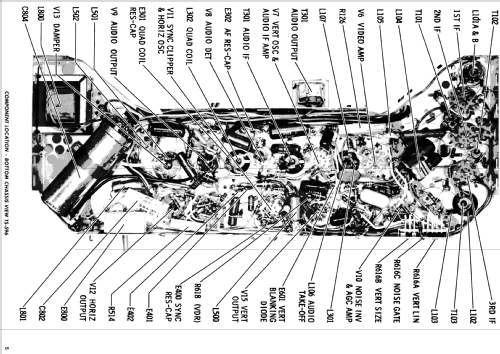

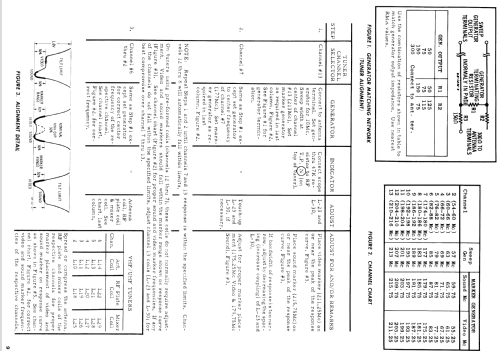

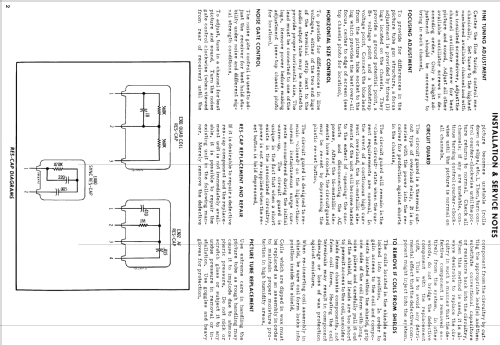

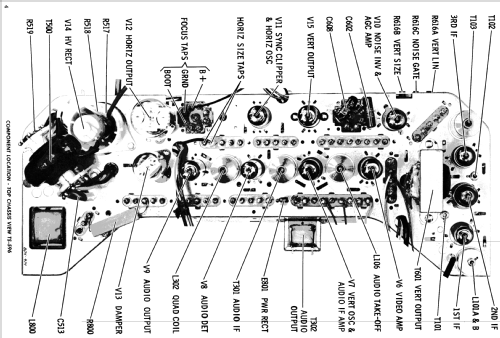

  • Literature/Schematics (2)
  • - - Manufacturers Literature (Motorola Datasheet 68P65135A40 Dated 6-65)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
