19P3-2 Ch= STS-435

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 234815

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 4ES8 5EU8 3BZ6 3BZ6 8GN8 3BU8 or 3GS8 3BU8 3DT6 8BQ5 5EA8 or 5GH8 12DQ6B 12AF3 3A3 7EY6 19AFP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• from Radiomuseum.org
• Model: 19P3-2 Ch= STS-435 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, low profile (big size).

• Notes

• The Motorola 19P3-2 is a 19" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis STS-435, VHF tuner TT-133 and picture tube 19AFP4.  Uses Elliptical 3" x 5" PM speaker.  Portable table model with handle. Has Qty(2) Selenium Rectifiers used for the phase detector, Qty(2) diodes used for power supply rectification and Qty(1) germanium diode video detector.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)

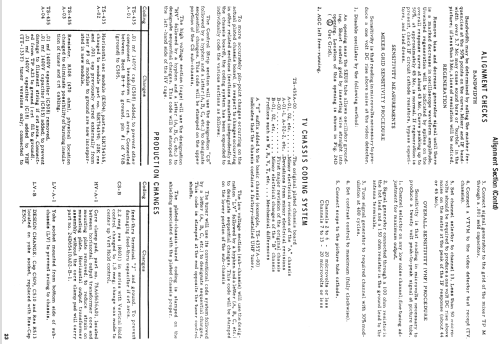

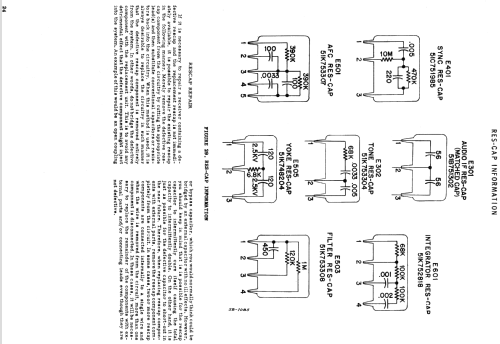

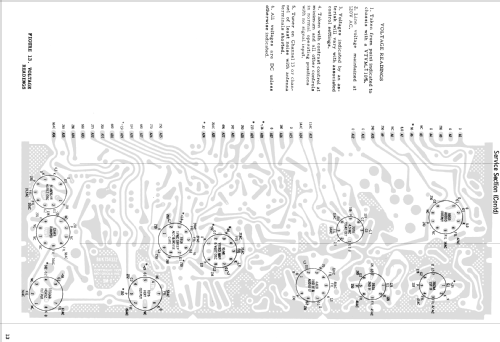

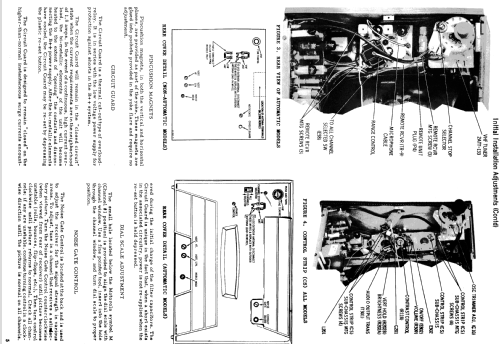

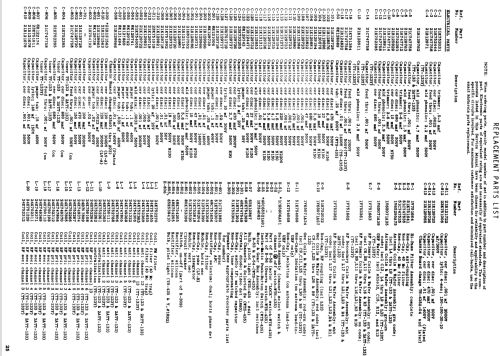

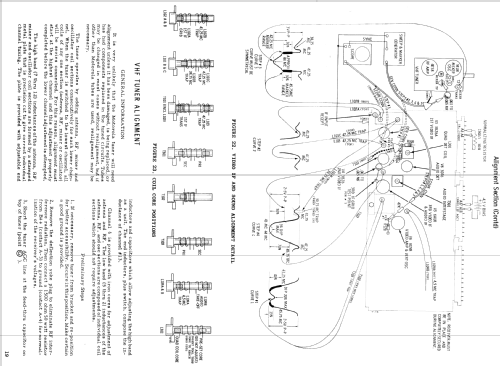

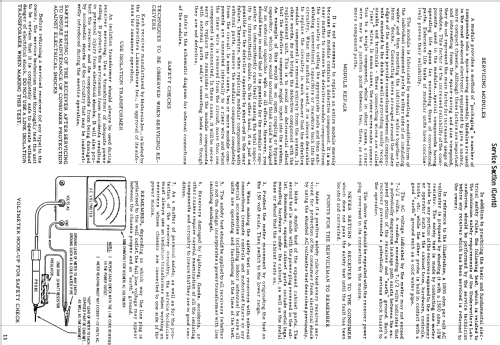

• - - Manufacturers Literature (Motorola Datasheet 68P65110A07)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 533 Folder 1 1953)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
