• Year
  • 1956
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 233151

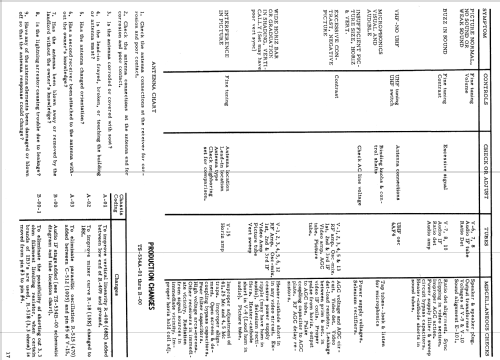

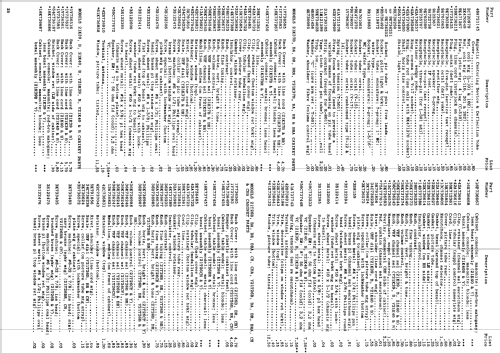

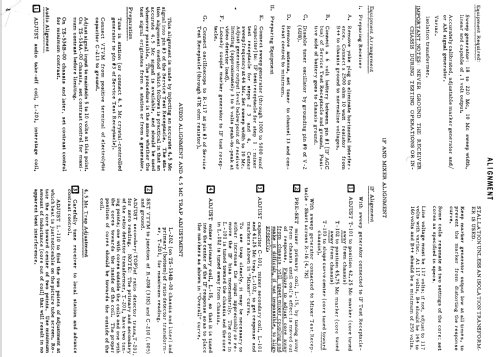

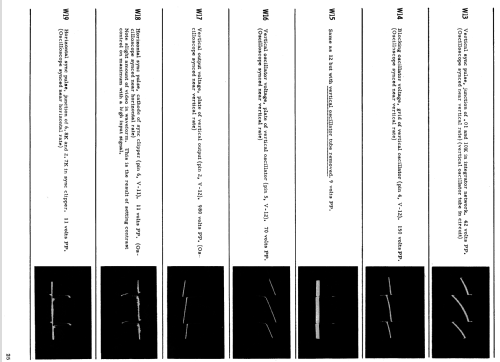

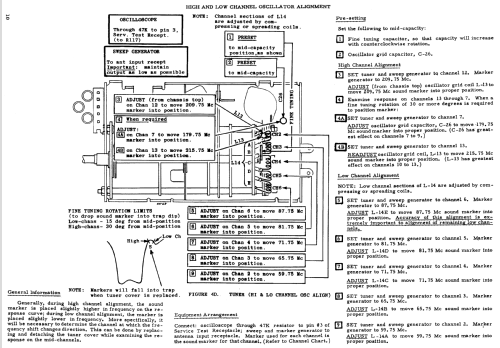

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 18
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 105 to 125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org

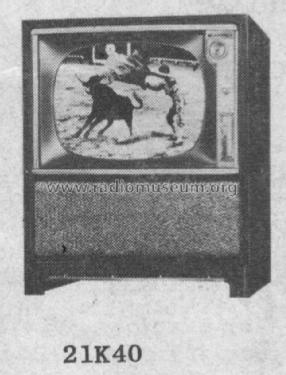

  • Model: 21K40 Ch= TS-534A - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console with any shape - in general
  • Notes
  • The Motorola 21K40 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis TS-534A, VHF tuner TT-79 and picture tube 21ALP4A.  Console model, Red-Brown Mahogany wooden masonite cabinet. Has Qty(2) Selenium Rectifiers and Qty(1) germanium diode detector.

  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Motorola Datasheet 68P736362)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
