21T25PK Ch= TS-530

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 208457

• Picture

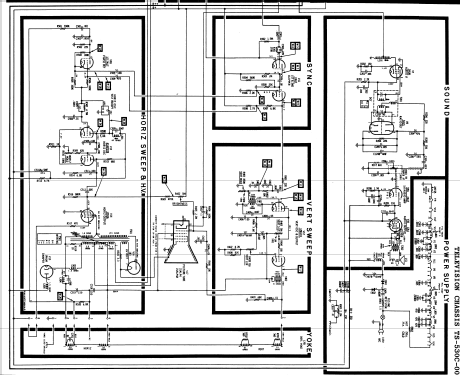

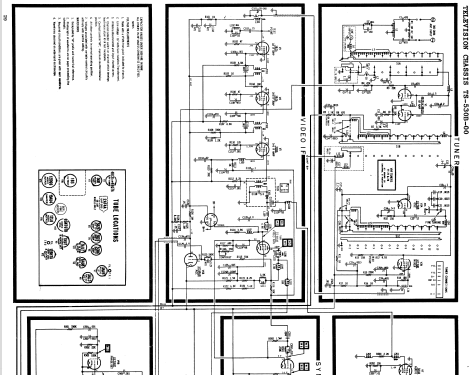

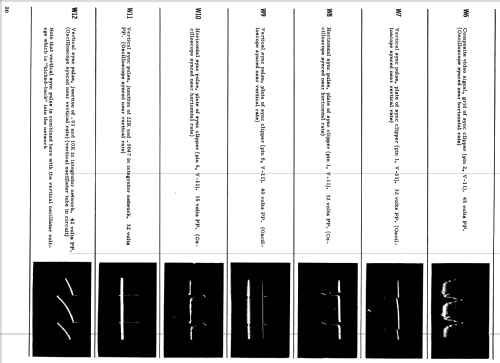

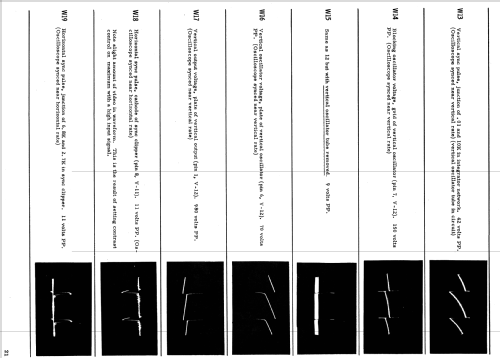

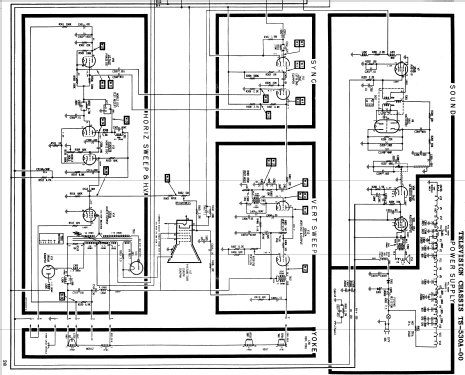

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 4BC8 5U8 3BZ6 3BZ6 3CB6 6AU8 3AU6 3AL5 7AU7 12L6 7AU7 12BH7A 6SN7GTB 12DQ6 19AU4 1B3 21ALP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: 21T25PK Ch= TS-530 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, with any shape - general.

• Notes
• 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Table model, pink, metal.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 315 Folder 7 Dated 5-56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 330 Folder 1 Dated 9-56)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
