49L13Q Ch= HS-183

49L13Q Ch= HS-183; Motorola Inc. ex (ID = 1075800) Radio

49L13Q Ch= HS-183; Motorola Inc. ex (ID = 1075801) Radio

49L13Q Ch= HS-183; Motorola Inc. ex (ID = 1075802) Radio

49L13Q Ch= HS-183; Motorola Inc. ex (ID = 1075803) Radio

49L13Q Ch= HS-183; Motorola Inc. ex (ID = 1075804) Radio

49L13Q Ch= HS-183; Motorola Inc. ex (ID = 1075805) Radio

49L13Q Ch= HS-183; Motorola Inc. ex (ID = 109674) Radio

49L13Q Ch= HS-183; Motorola Inc. ex (ID = 269712) Radio

49L13Q Ch= HS-183; Motorola Inc. ex (ID = 269713) Radio

49L13Q Ch= HS-183; Motorola Inc. ex (ID = 269714) Radio
49L13Q Ch= HS-183; Motorola Inc. ex (ID = 388325) Radio 49L13Q Ch= HS-183; Motorola Inc. ex (ID = 388326) Radio
49L13Q Ch= HS-183; Motorola Inc. ex (ID = 388327) Radio 49L13Q Ch= HS-183; Motorola Inc. ex (ID = 104433) Radio
49L13Q Ch= HS-183; Motorola Inc. ex (ID = 104434) Radio 49L13Q Ch= HS-183; Motorola Inc. ex (ID = 104435) Radio
49L13Q Ch= HS-183; Motorola Inc. ex (ID = 388328) Radio 49L13Q Ch= HS-183; Motorola Inc. ex (ID = 811323) Radio
49L13Q Ch= HS-183; Motorola Inc. ex (ID = 811326) Radio 49L13Q Ch= HS-183; Motorola Inc. ex (ID = 811327) Radio
Use red slider bar for more.
49L13Q Ch= HS-183; Motorola Inc. ex (ID = 388325) Radio
Motorola Inc. ex: 49L13Q Ch= HS-183 [Radio] ID = 388325 640x544
Select picture or schematic to display from thumbnails on the right and click for download.
For model 49L13Q Ch= HS-183, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1T4 1U5 3S4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 67.5, 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: 49L13Q Ch= HS-183 - Motorola Inc. ex Galvin Mfg.Co
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 200 x 160 x 120 mm / 7.9 x 6.3 x 4.7 inch
Notes Color=Green
External source of data Ernst Erb

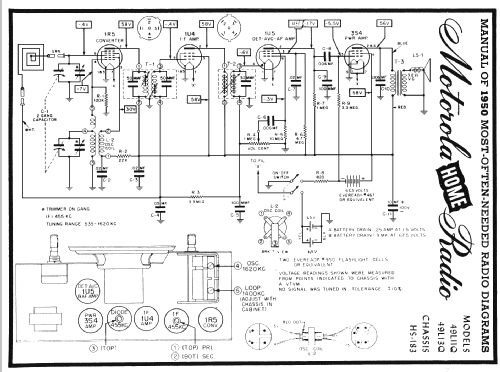

Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 10, 1950
