4MF Ch= FDA-18805-B-2
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1954
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 147557
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 265 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: 4MF Ch= FDA-18805-B-2 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Chassis only or for «building in»
- Notes
- 6" x 9" PM elliptical speaker; Vibrator for +B.
For 1954 Ford Automobiles.
- Literature/Schematics (1)

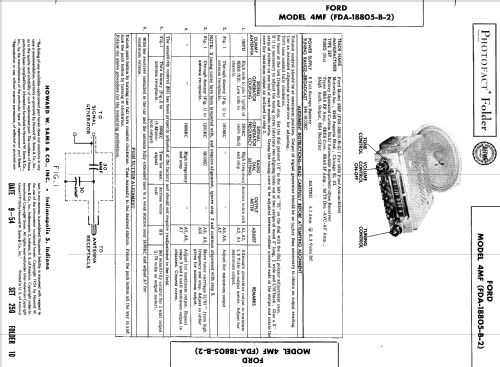

- Photofact Folder, Howard W. SAMS (Date 9-54, Set 250, Folder 10)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
