• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 203539

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

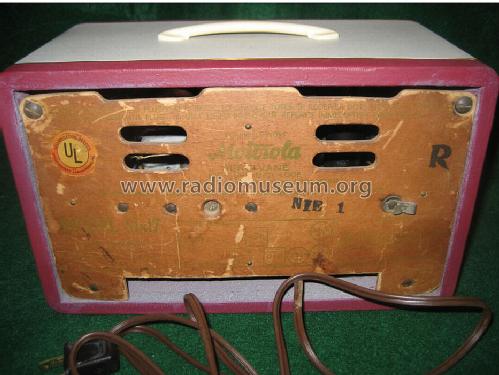

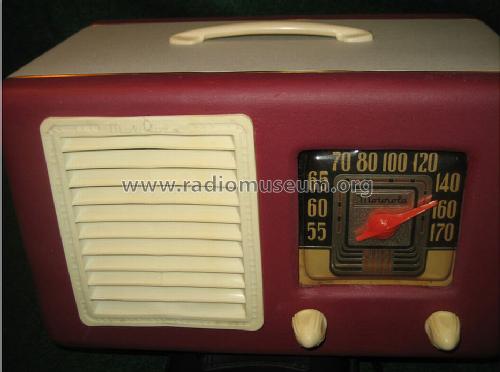

• Model: 51x17 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 10.25 x 6.25 x 5.75 inch / 260 x 159 x 146 mm

• Mentioned in
• Radio Retailing (Radio & Television R.) (November 1941 page 31.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
