- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 48894
Copy gen. von Steve Tardi Radio Attic

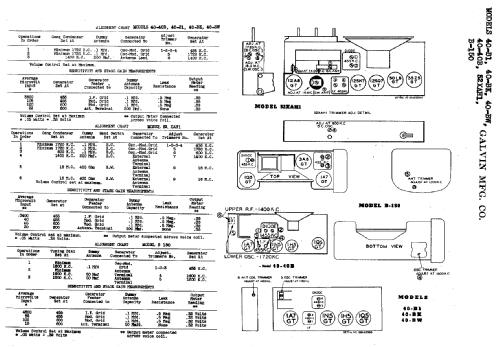

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 52XAH1 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 11.75 x 7.75 x 6.875 inch / 298 x 197 x 175 mm
- Notes
-
Tuning Range 540 to 1720 kc and 5650 to 18,000 kc. Brown and Ivory plastic cabinet.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (3)
- Motorola Folder H-201, for 1941.
