53C1 Ch= HS-366

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86542

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

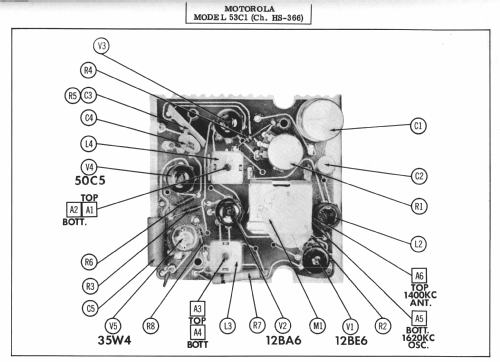

• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 53C1 Ch= HS-366 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• Motorola model 53C1 is an AC operated AM superheterodyne receiver with electric clock. Color walnut.



• Price in first year of sale
• 30.00 $

• External source of data
• Original AD, Life magazine, 1953

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 14, 1954

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 236, folder 7, dated 4-54)

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
