53C4 Ch= HS-366
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 86554
Beitman
Beitman
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 53C4 Ch= HS-366 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
-
Motorola model 53C4 is an AC operated AM superheterodyne receiver with electric clock.
Color is red.
- Price in first year of sale
- 30.00 $
- External source of data
- Original AD, Life magazine, 1953

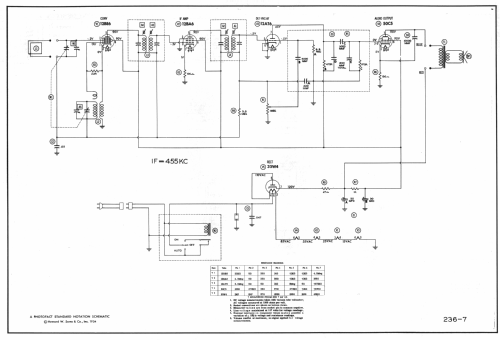

- Circuit diagram reference

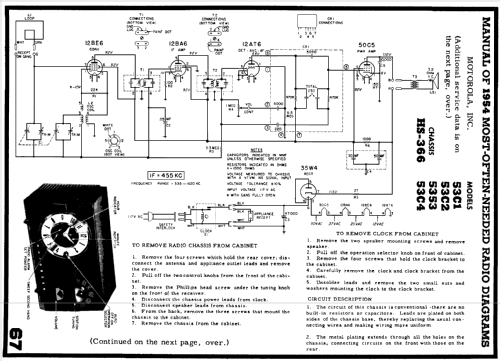

- Beitman Radio Diagrams Vol. 14, 1954
- Literature/Schematics (2)

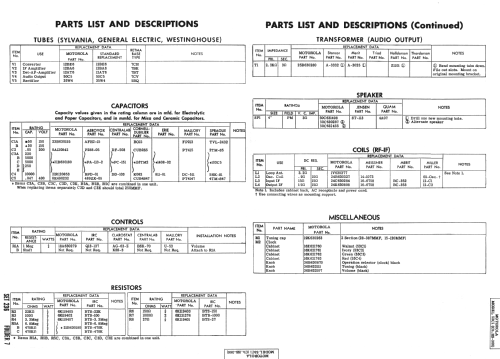

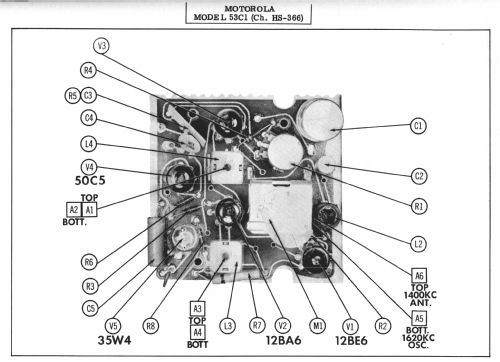

- Photofact Folder, Howard W. SAMS (Set 236, folder 7, dated 4-54)
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
