• Year
  • 1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 86582

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / AC/DC 117 / A: 2 x 1.5 & B: 67.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

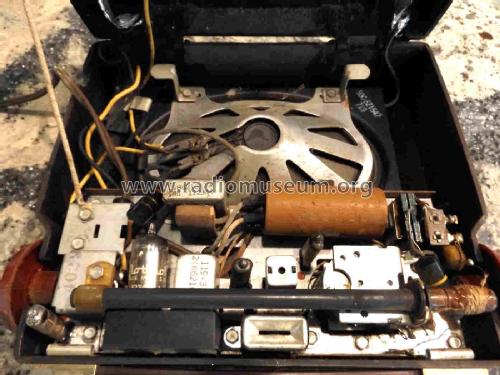

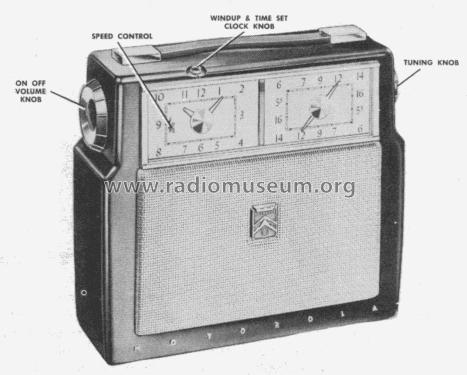

  • Model: 53LC2 Ch= HS-347 [maroon] - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Color maroon. Built in spring wound clock. Long-range antenna, sturdy chassis. Battery-saving sub-miniature tubes. AC, DC or battery. Selenium Rectifier

    Tuning Range:
    535 - 1620 kHz


  • Price in first year of sale
  • 45.00 $
  • External source of data
  • Original advertising, Life magazine, 1953
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 13, 1953
  • Mentioned in

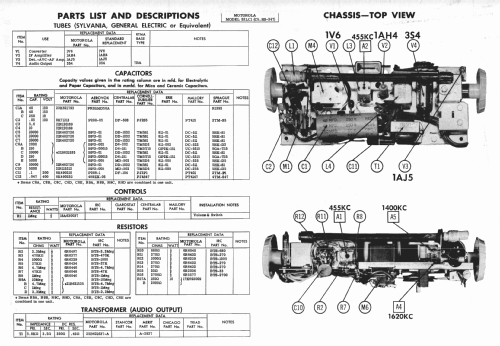

  • - - Manufacturers Literature (Motorola Service Manual Part No. 68P630448)
  • Author
  • Model page created by Vitor Oliveira. See "Data change" for further contributors.
