• Year
  • 1955 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 81714

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / 117 AC DC/7.5/90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org

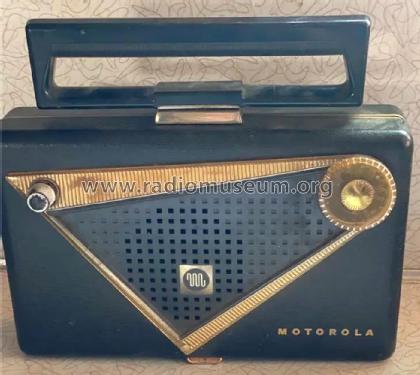

  • Model: 55L1U Ch=HS-509 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 10.2 x 9 x 2.25 inch / 259 x 229 x 57 mm
  • Notes
  • color=black; Selenium Rectifier
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 16, 1956
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
