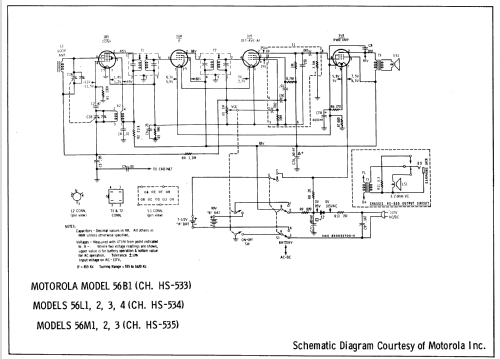

Select picture or schematic to display from thumbnails on the right and click for download.
For model 56B1 Ch= HS-533, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 117 AC DC; 7.5 & 90 Volt Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: 56B1 Ch= HS-533 - Motorola Inc. ex Galvin Mfg.Co
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10.5 x 9 x 3 inch / 267 x 229 x 76 mm
Notes

Color = Brown; Selenium Rectifier.

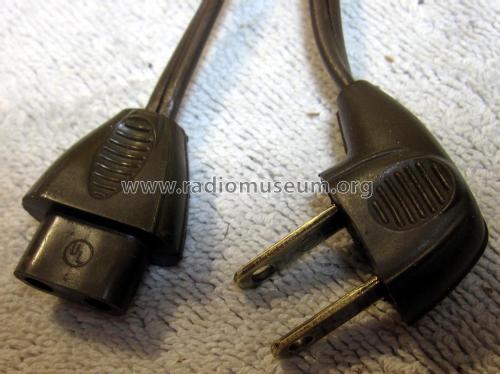

The power cord appears to be similar to the safety interlock cords used on many radios and televisions but the pin spacing is about 1mm wider than the more common interlock cord.

Source of data - - Data from my own collection
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 9-59, Set 455, Servicer)

Model page created by Keith Staines. See "Data change" for further contributors.
