Motorola Inc. ex: 56X11 Ch= HS-94 [Radio] ID = 2452522 1400x1192

Select picture or schematic to display from thumbnails on the right and click for download.

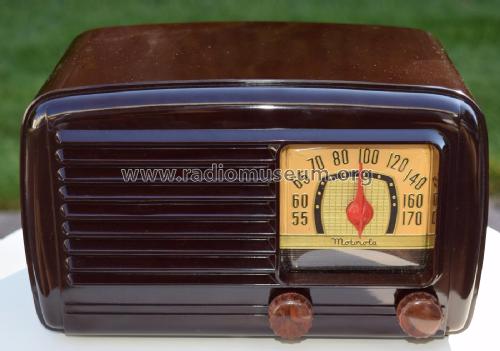

For model 56X11 Ch= HS-94, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):
Greg Mercurio

Country:

United States of America (USA)

Manufacturer / Brand:

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Year: 1947

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

5: 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT

Main principle	Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits	6 AM circuit(s)
Wave bands	Broadcast only (MW).
Details
Power type and voltage	AC/DC-set / 110 - 120 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org	Model: 56X11 Ch= HS-94 - Motorola Inc. ex Galvin Mfg.Co
Material	Modern plastics (no Bakelite or Catalin)
Shape	Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes	Color=Walnut.
Collectors' prices
External source of data	Ernst Erb
Source of data	Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference	Rider's Perpetual, Volume 17 = 1948 and before
Mentioned in	Guide to Old Radios
Literature/Schematics (1)	Photofact Folder, Howard W. SAMS (Set 28, Folder 4718-24)
