58R15 Ch= HS-116; Motorola Inc.; (ID = 1186895) Radio

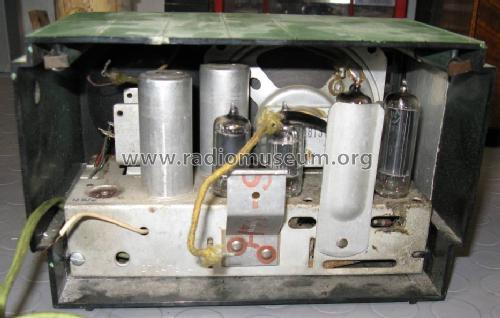

Motorola Inc.;: 58R15 Ch= HS-116 [Radio] ID = 1186895 933x626
Select picture or schematic to display from thumbnails on the right and click for download.
For model 58R15 Ch= HS-116, Motorola Inc.; Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc.; Schaumburg (IL)
alternative name

Galvin Mfg. Co. ; Chicago
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 58R15 Ch= HS-116 - Motorola Inc.; Schaumburg IL
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes Color=Green
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 09, 1949
Literature/Schematics (2) Photofact Folder, Howard W. SAMS (4819-14 Set 49 Folder 14)


All listed radios etc. from Motorola Inc.; Schaumburg (IL)
