5C1 Radio-Larm Ch=HS-228; Motorola Inc. ex (ID = 271947) Radio

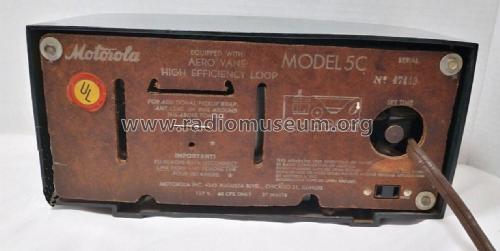

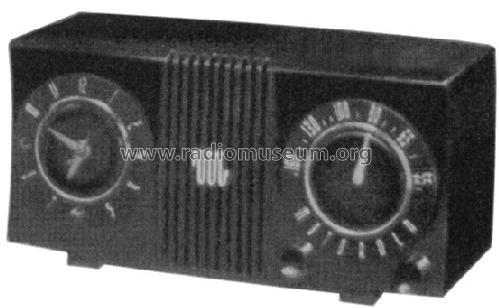

Motorola Inc. ex: 5C1 Radio-Larm Ch=HS-228 [Radio] ID = 271947 325x185
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5C1 Radio-Larm Ch=HS-228, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 5C1 Radio-Larm Ch=HS-228 - Motorola Inc. ex Galvin Mfg.Co
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 290 x 135 x 120 mm / 11.4 x 5.3 x 4.7 inch
Notes Color=Green . Aero Vane high efficiency loop.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

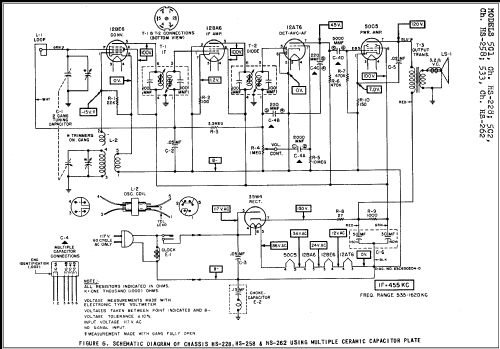

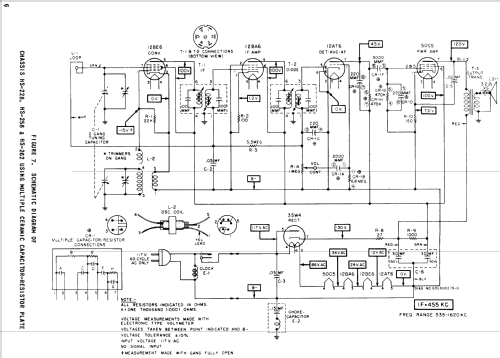

Circuit diagram reference Rider's Perpetual, Volume 21, Copyright 1950
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965

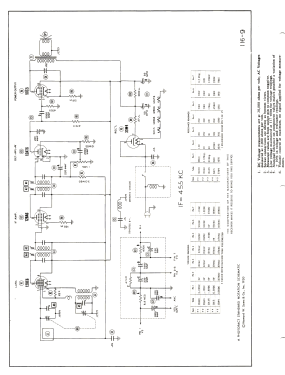

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 12-50, Set 116, Folder 9)
Literature/Schematics (2) Machine Age to Jet Age II (page 197.)


All listed radios etc. from Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Here you find 4105 models, 2817 with images and 3743 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
