5J1U Ch= HS-224
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 49005
Riders
Riders
Riders
Riders
With courtesy by Mark Delauter
With courtesy by Mark Delauter back view
With courtesy by Mark Delauter side view
With courtesy by Mark Delauter dial view
With courtesy by Mark Delauter model number
With courtesy by Mark Delauter open view
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 110-120/ 90 & 3 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- from Radiomuseum.org
- Model: 5J1U Ch= HS-224 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Color:Black .

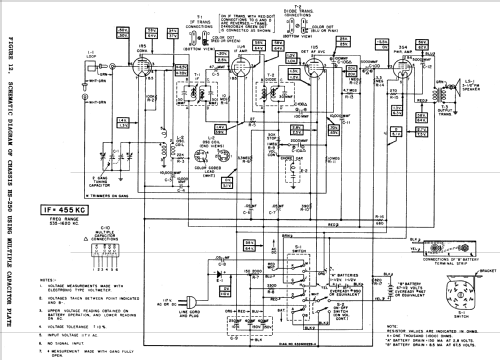

Caution: Beitman´s schematic is not really correct. The chassis HS-224 uses a 5PDT switch (mains / battery selector), not a 4PDT as in the HS-250 depicted in Beitmans schematic diagram.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 7-50, Set 100, Folder 7)
