For model 5L2U Ch= HS-224, Motorola Inc.; Schaumburg (IL):

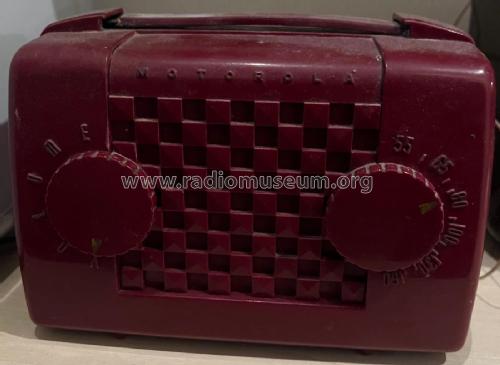

Ebay Seller: nye69 Item Number: 140867700681 Motorola 5L2U Front View #1

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc.; Schaumburg (IL)
alternative name

Galvin Mfg. Co. ; Chicago
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3S4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 117 ACDC; (67.5; 3) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: 5L2U Ch= HS-224 - Motorola Inc.; Schaumburg IL
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

Caution: Beitman´s schematic is not really correct. The chassis HS-224 uses a 5PDT switch (mains / battery selector), not a 4PDT as in the HS-250 depicted in Beitmans schematic diagram.

Available in: brown, ivory, maroon, orange, red or green.

External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 22, covering 1951
Mentioned in Table Top Radios Vol. 1 Stein 98 (page 116.)
Literature/Schematics (1) -- Schematic
