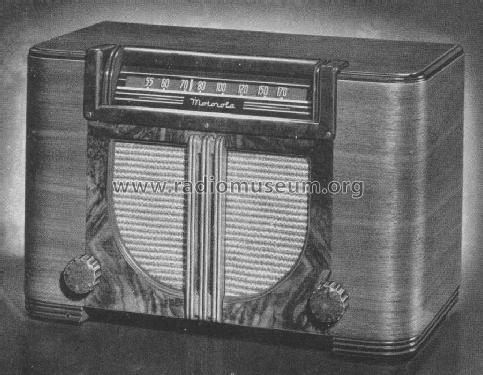

Motorola Inc. ex: 61X17 [Radio] ID = 145206 399x261
Select picture or schematic to display from thumbnails on the right and click for download.
For model 61X17, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SJ7GT 12SA7GT 12SK7GT 12SQ7GT 35Z5GT 35L6GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: 61X17 - Motorola Inc. ex Galvin Mfg.Co
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 340 x 210 x 175 mm / 13.4 x 8.3 x 6.9 inch
Notes AERO-VANE High Efficiency Loop (Antenna).
External source of data Ernst Erb
Source of data - - Manufacturers Literature
Circuit diagram reference Rider's Perpetual, Volume 14 = 1944 = before 1943
Mentioned in My own collection!
