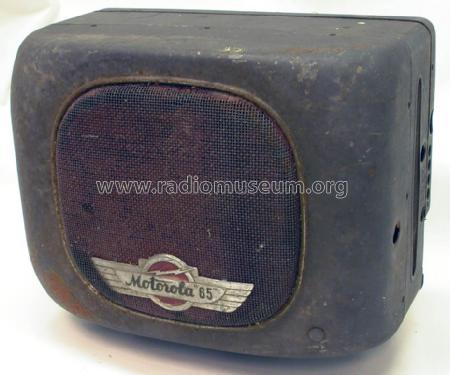

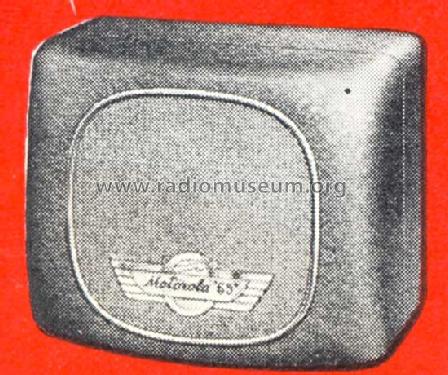

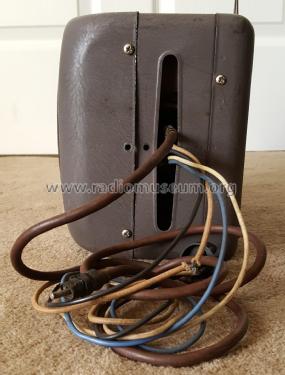

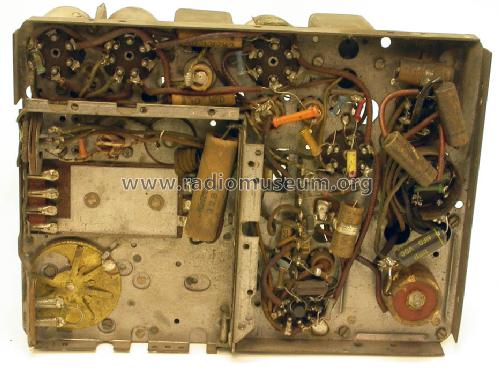

Motorola Inc. ex: 65 [Car Radio] ID = 2424748 1400x1027
Select picture or schematic to display from thumbnails on the right and click for download.
For model 65, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1937/1938 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 78 6A7 78 75 6AB6G 0Z4 or 6X5G
Main principle Superhet with RF-stage; ZF/IF 262 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: 65 - Motorola Inc. ex Galvin Mfg.Co
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 10.875 x 8.125 x 6.75 inch / 276 x 206 x 171 mm
Notes

Vibrator for +B.

Price in first year of sale 49.95 $
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Radio Retailing (Radio & Television R.) (February, March 1937.)
Literature/Schematics (3) Motorola Folder for 1938.
