65T21 Ch= HS-32

65T21 Ch= HS-32; Motorola Inc. ex (ID = 79220) Radio

65T21 Ch= HS-32; Motorola Inc. ex (ID = 79222) Radio

65T21 Ch= HS-32; Motorola Inc. ex (ID = 79225) Radio

65T21 Ch= HS-32; Motorola Inc. ex (ID = 395377) Radio

65T21 Ch= HS-32; Motorola Inc. ex (ID = 395378) Radio

65T21 Ch= HS-32; Motorola Inc. ex (ID = 395379) Radio

65T21 Ch= HS-32; Motorola Inc. ex (ID = 395380) Radio

65T21 Ch= HS-32; Motorola Inc. ex (ID = 395381) Radio

65T21 Ch= HS-32; Motorola Inc. ex (ID = 395382) Radio

65T21 Ch= HS-32; Motorola Inc. ex (ID = 395383) Radio
65T21 Ch= HS-32; Motorola Inc. ex (ID = 1982675) Radio 65T21 Ch= HS-32; Motorola Inc. ex (ID = 831699) Radio
65T21 Ch= HS-32; Motorola Inc. ex (ID = 831701) Radio 65T21 Ch= HS-32; Motorola Inc. ex (ID = 831700) Radio
65T21 Ch= HS-32; Motorola Inc. ex (ID = 122687) Radio 65T21 Ch= HS-32; Motorola Inc. ex (ID = 140713) Radio
65T21 Ch= HS-32; Motorola Inc. ex (ID = 285897) Radio 65T21 Ch= HS-32; Motorola Inc. ex (ID = 831702) Radio
65T21 Ch= HS-32; Motorola Inc. ex (ID = 831703) Radio 65T21 Ch= HS-32; Motorola Inc. ex (ID = 981558) Radio
Use red slider bar for more.
65T21 Ch= HS-32; Motorola Inc. ex (ID = 1982675) Radio
Motorola Inc. ex: 65T21 Ch= HS-32 [Radio] ID = 1982675 1368x1026

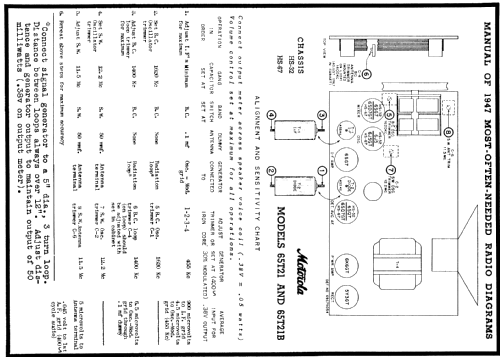

Select picture or schematic to display from thumbnails on the right and click for download.
For model 65T21 Ch= HS-32, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):

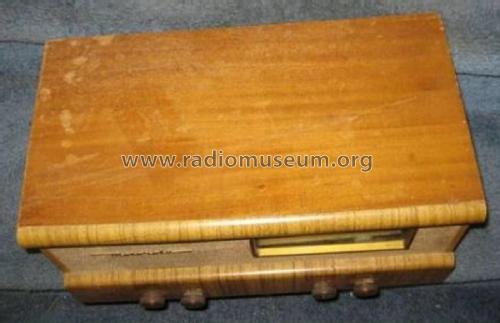

My Motorola 65T21 after I restored it.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SG7 6J5 6SG7 6SQ7 6K6GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 65T21 Ch= HS-32 - Motorola Inc. ex Galvin Mfg.Co
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 18.25 x 9.375 x 9.75 inch / 464 x 238 x 248 mm
Notes See also 65T21B with Chassis HS67 instead of HS32. One was delivered with metal tubes the other with glass tubular types. This involved minor modifications to components
See also Rider's Perpetual, Volume 17.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 07, 1947
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (January 1946 page 116. February 1947 page 21.)
Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Date June 1946, Set 461, folder 1.)
