• Year
  • 1955 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 81703

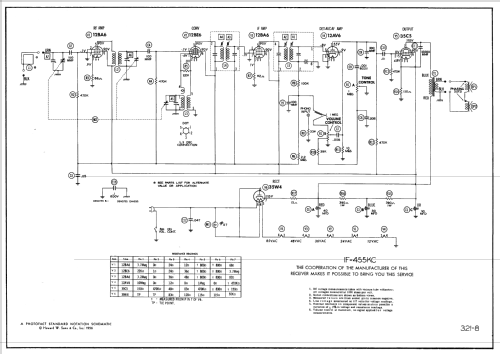

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 66X2 Ch= HS-478 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • AC-DC Operated AM Superheterodyne Receiver . Color=Ivory



  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 16, 1956
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
