• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72111

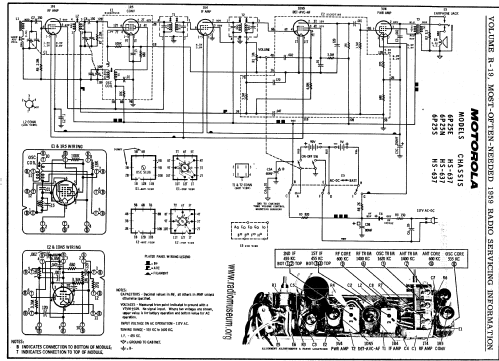

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1T4 1R5 1U4 1DN5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• from Radiomuseum.org
• Model: 6P25E HS-637 Chassis - Motorola Inc. ex Galvin Mfg.Co

• Source of data
• Beitman Radio Diagrams, Vol. 19, 1959

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.

• Other Models

• Here you find 4508 models, 2955 with images and 4002 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
