For model 76T2 Ch= HS-507, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):
USA_Motorola_Model_76T2_1956

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N140 2N139 2N139 2N109 2N109 2N109 2N109 1N60
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 76T2 Ch= HS-507 - Motorola Inc. ex Galvin Mfg.Co

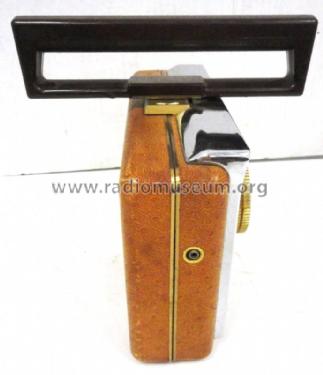

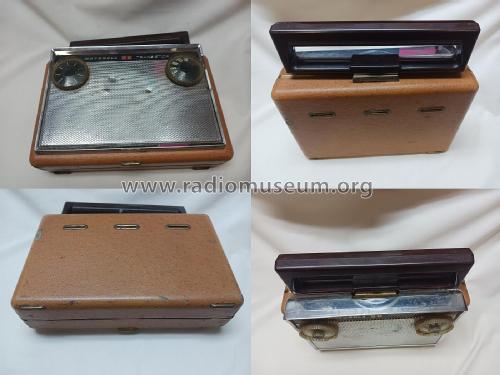

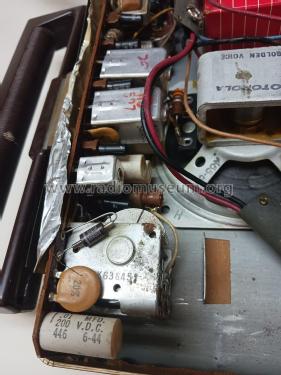

Shape Portable set > 8 inch (also usable without mains)
Notes

Color=Brown

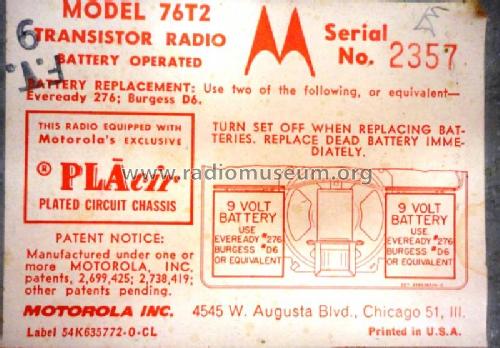

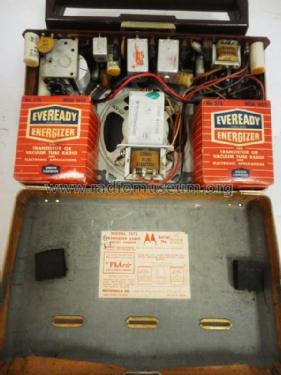

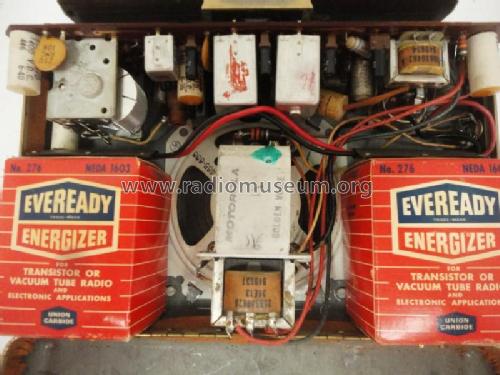

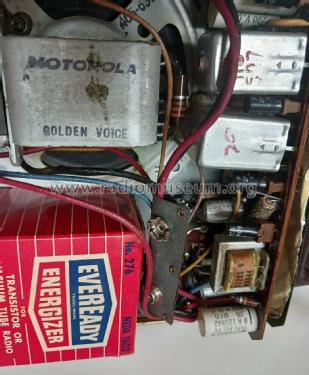

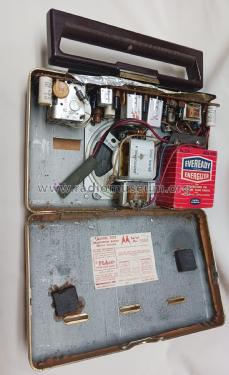

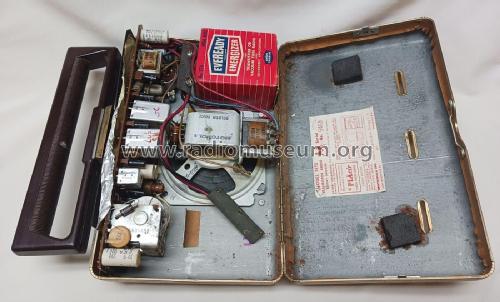

uses 2 batteries 9V Eveready 276 or equivalent in parallel

Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)

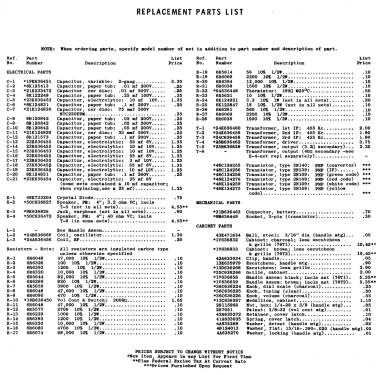

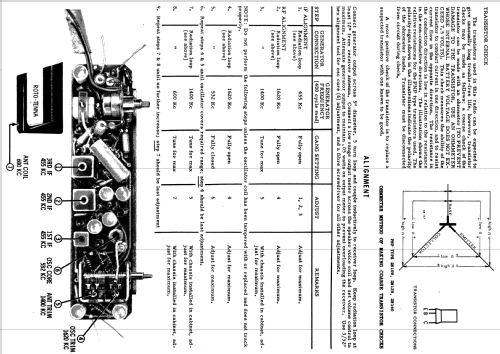

Circuit diagram reference Beitman Radio Diagrams Vol. 17, 1957

Model page created by Egon Penker. See "Data change" for further contributors.
