77FM22 Ch= HS-97; Motorola Inc. ex (ID = 294990) Radio
Motorola Inc. ex: 77FM22 Ch= HS-97 [Radio] ID = 294990 322x604
Select picture or schematic to display from thumbnails on the right and click for download.
For model 77FM22 Ch= HS-97, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner

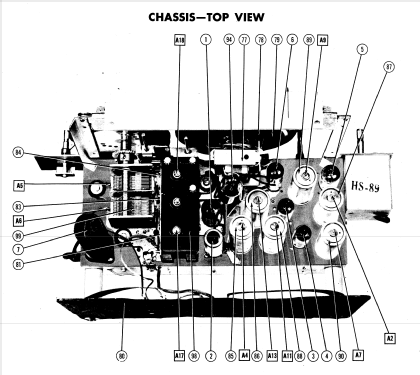

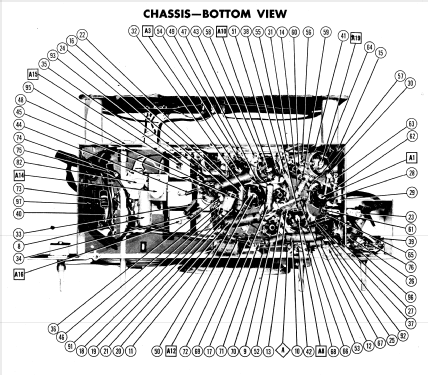

Valves / Tubes 6: 12AT7 12BE6 12BA6 12BA6 19T8 50B5

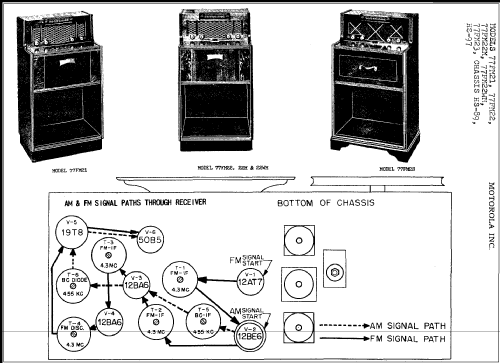

Main principle Superheterodyne (common); ZF/IF 455/4300 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 77FM22 Ch= HS-97 - Motorola Inc. ex Galvin Mfg.Co

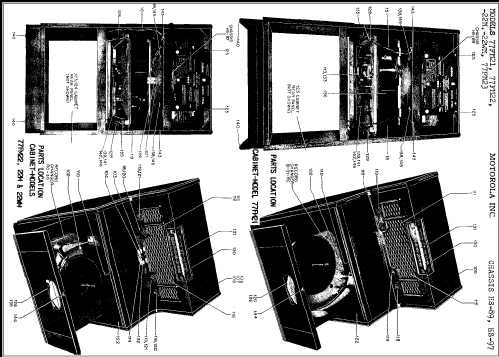

Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes Color=Walnut
Selenium Rectifier.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

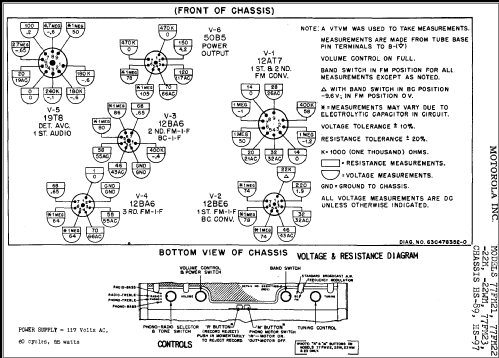

Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965

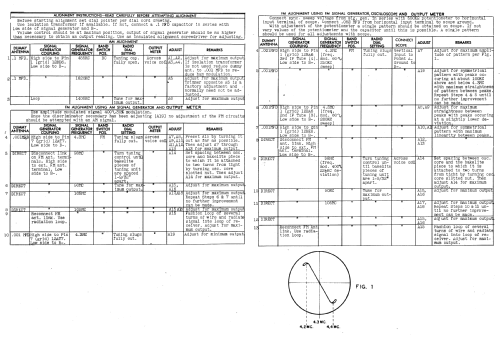

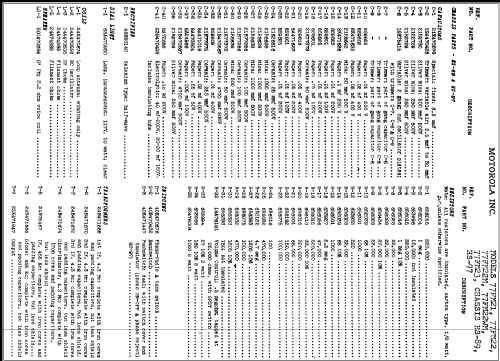

Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 33, Date 2/48, Folder 483-13)
