77FM23 Ch= HS-89

77FM23 Ch= HS-89; Motorola Inc. ex (ID = 294969) Radio

77FM23 Ch= HS-89; Motorola Inc. ex (ID = 294970) Radio

77FM23 Ch= HS-89; Motorola Inc. ex (ID = 294971) Radio

77FM23 Ch= HS-89; Motorola Inc. ex (ID = 294972) Radio

77FM23 Ch= HS-89; Motorola Inc. ex (ID = 294973) Radio

77FM23 Ch= HS-89; Motorola Inc. ex (ID = 294974) Radio

77FM23 Ch= HS-89; Motorola Inc. ex (ID = 294975) Radio

77FM23 Ch= HS-89; Motorola Inc. ex (ID = 294976) Radio

77FM23 Ch= HS-89; Motorola Inc. ex (ID = 294977) Radio

77FM23 Ch= HS-89; Motorola Inc. ex (ID = 294978) Radio
77FM23 Ch= HS-89; Motorola Inc. ex (ID = 964211) Radio 77FM23 Ch= HS-89; Motorola Inc. ex (ID = 294968) Radio
77FM23 Ch= HS-89; Motorola Inc. ex (ID = 964212) Radio 77FM23 Ch= HS-89; Motorola Inc. ex (ID = 964213) Radio
77FM23 Ch= HS-89; Motorola Inc. ex (ID = 964214) Radio
Use red slider bar for more.

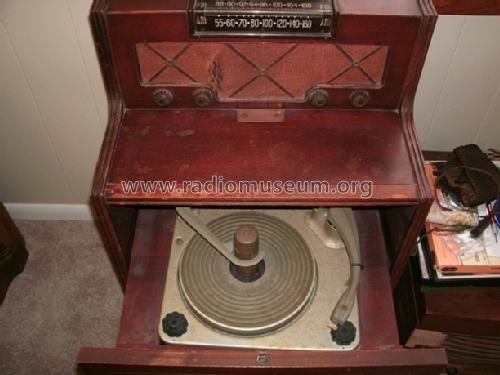

77FM23 Ch= HS-89; Motorola Inc. ex (ID = 964211) Radio

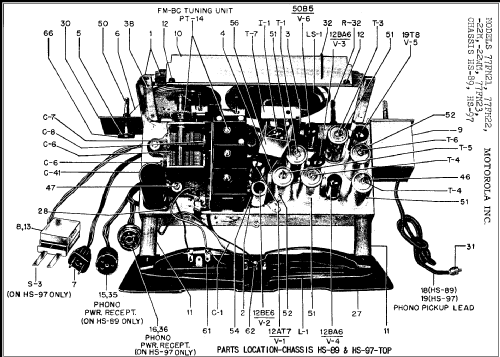

Motorola Inc. ex: 77FM23 Ch= HS-89 [Radio] ID = 964211 418x561
Select picture or schematic to display from thumbnails on the right and click for download.
For model 77FM23 Ch= HS-89, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12AT7 12BE6 12BA6 12BA6 19T8 50B5
Main principle Superheterodyne (common); ZF/IF 455/4300 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 77FM23 Ch= HS-89 - Motorola Inc. ex Galvin Mfg.Co
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes Color=Mahogany
Selenium Rectifier.
External source of data Ernst Erb

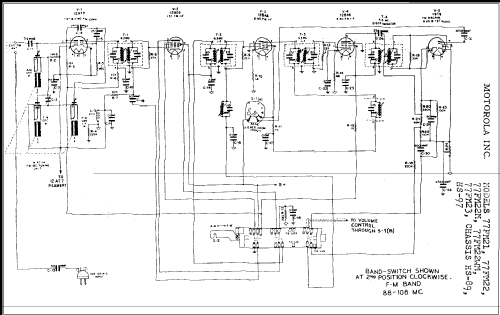

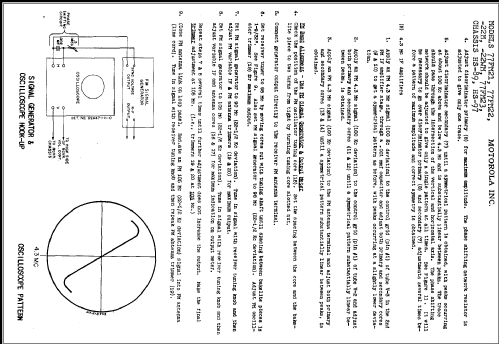

Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before


All listed radios etc. from Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Here you find 4109 models, 2818 with images and 3747 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
