For model 77XM22 Ch= HS-102, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):
front

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12AT7 12BE6 12BA6 12BA6 19T8 50B5
Main principle Superheterodyne (common); ZF/IF 455/4300 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 77XM22 Ch= HS-102 - Motorola Inc. ex Galvin Mfg.Co
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 13.375 x 8 x 7.375 inch / 340 x 203 x 187 mm
Notes

Selenium Rectifier. Walnut cabinet. Also available in Blonde cabinet, Motorola model 77XM22B.

External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965

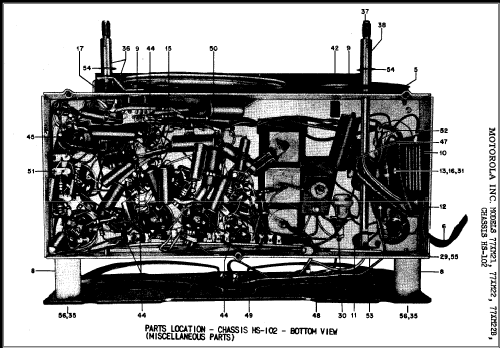

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 34, Folder 484-12)
Literature/Schematics (3) Motorola Folder D1237 for 1949.


All listed radios etc. from Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
