For model 78F11 Ch= HS-155, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):
Scanned from the Motorola Folder D1237 for 1949.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SK7 6SA7 6SK7 12SQ7 50L6 50L6
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 78F11 Ch= HS-155 - Motorola Inc. ex Galvin Mfg.Co
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 20 x 34.5 x 17 inch / 508 x 876 x 432 mm
Notes

Built in loop antenna. Selenium rectifier. In Walnut or Mahogany finish cabinet.

External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965

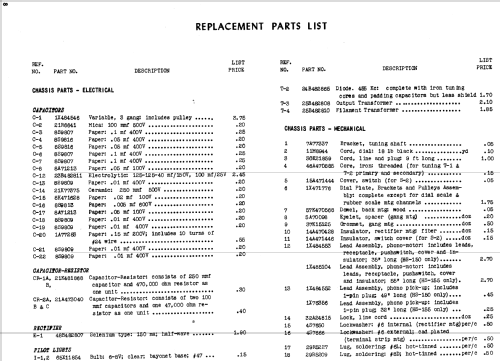

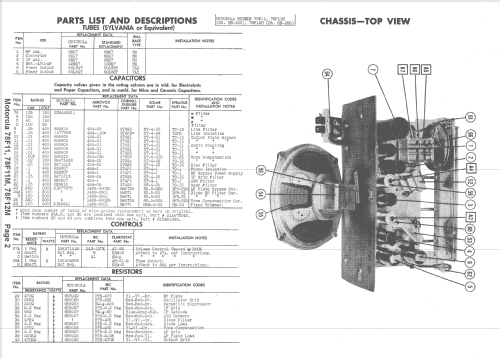

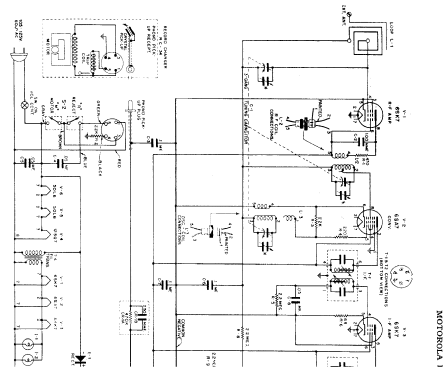

Literature/Schematics (1) Riders 19-82 to 19-90
Literature/Schematics (3) Motorola Folder D1237 for 1949.
