Motorola Inc. ex: 78F11M Ch= HS150 [Radio] ID = 1083049 539x805
Select picture or schematic to display from thumbnails on the right and click for download.
For model 78F11M Ch= HS150, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):
Picture from Motorola datasheet

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SK7 6SA7 6SK7 12SQ7 50L6 50L6
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 78F11M Ch= HS150 - Motorola Inc. ex Galvin Mfg.Co
Notes Built in loop antenna. Selenium rectifier.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before

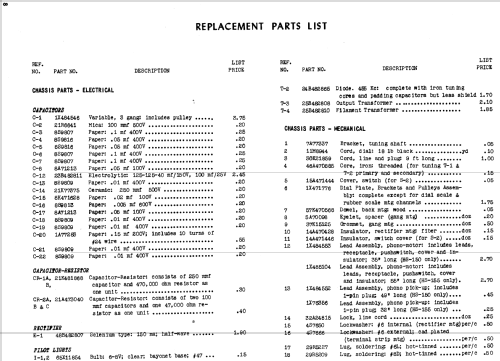

Literature/Schematics (1) Riders 19-82 to 19-90.
