78F12M Ch= HS150

78F12M Ch= HS150; Motorola Inc. ex (ID = 1072143) Radio

78F12M Ch= HS150; Motorola Inc. ex (ID = 1072144) Radio

78F12M Ch= HS150; Motorola Inc. ex (ID = 1072145) Radio

78F12M Ch= HS150; Motorola Inc. ex (ID = 1072146) Radio

78F12M Ch= HS150; Motorola Inc. ex (ID = 1072147) Radio

78F12M Ch= HS150; Motorola Inc. ex (ID = 1072148) Radio

78F12M Ch= HS150; Motorola Inc. ex (ID = 1072149) Radio

78F12M Ch= HS150; Motorola Inc. ex (ID = 1072150) Radio

78F12M Ch= HS150; Motorola Inc. ex (ID = 1072151) Radio

78F12M Ch= HS150; Motorola Inc. ex (ID = 1072152) Radio
78F12M Ch= HS150; Motorola Inc. ex (ID = 1494900) Radio
Use red slider bar for more.
78F12M Ch= HS150; Motorola Inc. ex (ID = 1494900) Radio
Motorola Inc. ex: 78F12M Ch= HS150 [Radio] ID = 1494900 933x1028

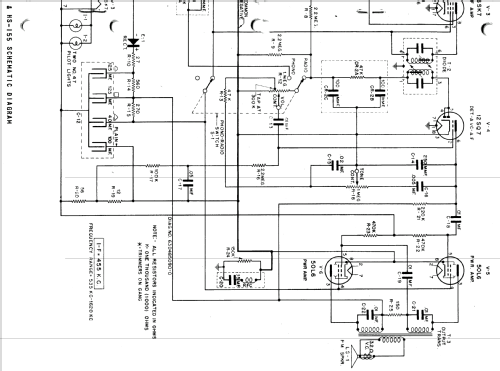

Select picture or schematic to display from thumbnails on the right and click for download.
For model 78F12M Ch= HS150, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):

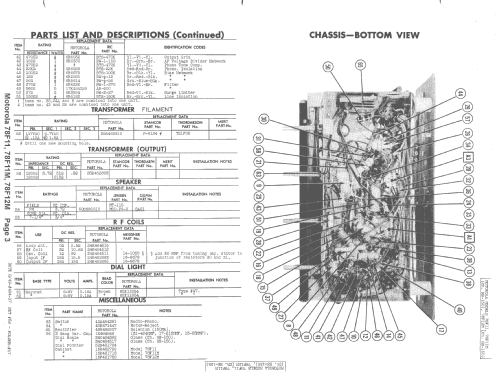

SAMS Photofact Vol.6/48 494-17 Set 56 Folder 17

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SK7 6SA7 6SK7 12SQ7 50L6 50L6
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 78F12M Ch= HS150 - Motorola Inc. ex Galvin Mfg.Co
Shape Console with any shape - in general
Notes Built in loop antenna. Selenium rectifier.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

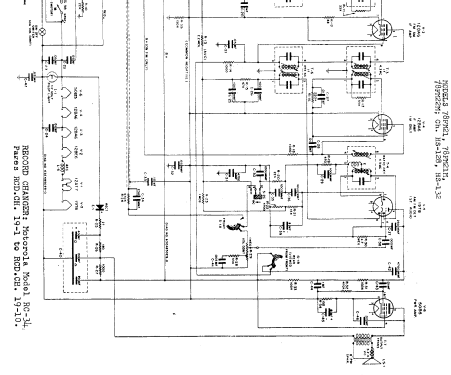

Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Riders 19-82 to 19-90.
