79FM21 HS178 (Ch=HS-178

79FM21 HS178 (Ch=HS-178; Motorola Inc. ex (ID = 1072169) Radio

79FM21 HS178 (Ch=HS-178; Motorola Inc. ex (ID = 1072170) Radio

79FM21 HS178 (Ch=HS-178; Motorola Inc. ex (ID = 1072171) Radio

79FM21 HS178 (Ch=HS-178; Motorola Inc. ex (ID = 1072172) Radio

79FM21 HS178 (Ch=HS-178; Motorola Inc. ex (ID = 1072173) Radio

79FM21 HS178 (Ch=HS-178; Motorola Inc. ex (ID = 1072174) Radio

79FM21 HS178 (Ch=HS-178; Motorola Inc. ex (ID = 1072175) Radio

79FM21 HS178 (Ch=HS-178; Motorola Inc. ex (ID = 1072176) Radio

79FM21 HS178 (Ch=HS-178; Motorola Inc. ex (ID = 1072177) Radio

79FM21 HS178 (Ch=HS-178; Motorola Inc. ex (ID = 1072178) Radio
79FM21 HS178 (Ch=HS-178; Motorola Inc. ex (ID = 1072465) Radio
Use red slider bar for more.
79FM21 HS178 (Ch=HS-178; Motorola Inc. ex (ID = 1072465) Radio
Motorola Inc. ex: 79FM21 HS178 (Ch=HS-178 [Radio] ID = 1072465 582x708
Select picture or schematic to display from thumbnails on the right and click for download.
For model 79FM21 HS178 (Ch=HS-178, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):

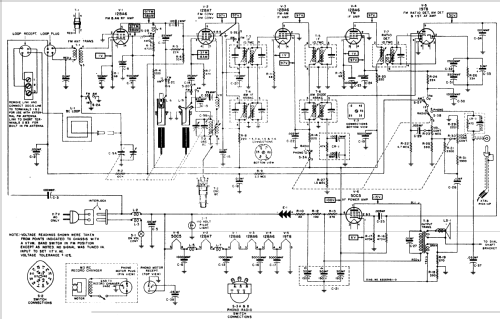

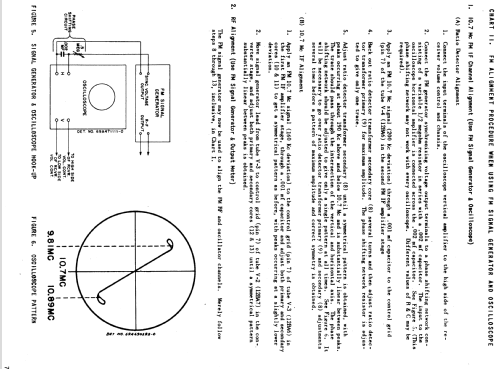

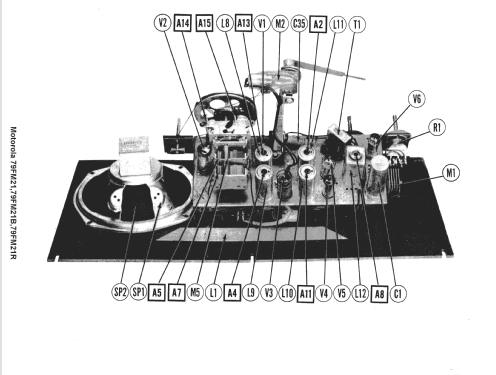

From Motorola schematic for models 79FM21, 79FM21B and 79FM21R.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BA6 12BA7 12BA6 12BA6 12AU6 19T8 50C5
Main principle Superheterodyne (common); ZF/IF 455,10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 79FM21 HS178 (Ch=HS-178 - Motorola Inc. ex Galvin Mfg.Co
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 10, 1950

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
