Power-10 7X23E Ch= HS-688

Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1144985) Radio

Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1144986) Radio

Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1144987) Radio

Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1144988) Radio

Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1144989) Radio

Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1144990) Radio

Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1144991) Radio

Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1144992) Radio

Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1144993) Radio

Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 59748) Radio
Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1895874) Radio Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 300464) Radio
Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 339403) Radio Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1203885) Radio
Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1203886) Radio Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1203887) Radio
Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1203888) Radio Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1203889) Radio
Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1203890) Radio Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1203891) Radio
Use red slider bar for more.
Power-10 7X23E Ch= HS-688; Motorola Inc. ex (ID = 1895874) Radio
Motorola Inc. ex: Power-10 7X23E Ch= HS-688 [Radio] ID = 1895874 1392x1392
Select picture or schematic to display from thumbnails on the right and click for download.
For model Power-10 7X23E Ch= HS-688, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N168A 2N168A 2N293 2N293 2N265 2N241 2N241
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details

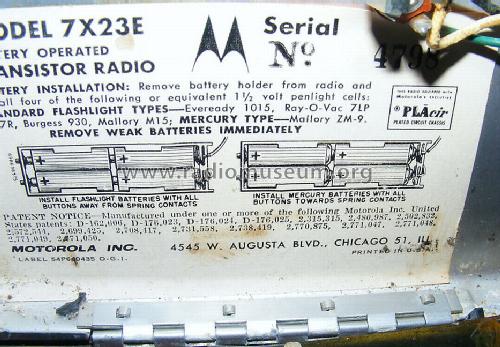

Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out
from Radiomuseum.org Model: Power-10 7X23E Ch= HS-688 - Motorola Inc. ex Galvin Mfg.Co
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.5 x 5 x 0 inch / 165 x 127 x 0 mm
Notes

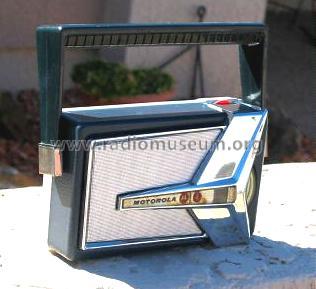

Motorola model 7X23E is a portable 7 transistor, 3 diode AM radio. AM Tuning Range: 535 to 1620 KHz. Color = Navy Blue (front) and Silver (rear). Earphone jack is located on bottom of radio which disconnects the speaker for private listening.

It probably inspired the "Jet Wing" models listed under Nipco 8 Transistors.

Circuit diagram reference Beitman Radio Diagrams Vol. 19, 1959
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 11-59, Set 462, Folder 12)
Literature/Schematics (2) - - Manufacturers Literature

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
