84MF Ch= B8A-18805-B Ford 1958

84MF Ch= B8A-18805-B; Motorola Inc. ex (ID = 138108) Car Radio

84MF Ch= B8A-18805-B; Motorola Inc. ex (ID = 820523) Car Radio

84MF Ch= B8A-18805-B; Motorola Inc. ex (ID = 820524) Car Radio

84MF Ch= B8A-18805-B; Motorola Inc. ex (ID = 820525) Car Radio

84MF Ch= B8A-18805-B; Motorola Inc. ex (ID = 820526) Car Radio

84MF Ch= B8A-18805-B; Motorola Inc. ex (ID = 820527) Car Radio

84MF Ch= B8A-18805-B; Motorola Inc. ex (ID = 820528) Car Radio
84MF Ch= B8A-18805-B; Motorola Inc. ex (ID = 820522) Car Radio
Use red slider bar for more.
84MF Ch= B8A-18805-B; Motorola Inc. ex (ID = 820522) Car Radio
Motorola Inc. ex: 84MF Ch= B8A-18805-B [Car Radio] ID = 820522 650x421
Select picture or schematic to display from thumbnails on the right and click for download.
For model 84MF Ch= B8A-18805-B Ford 1958, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):

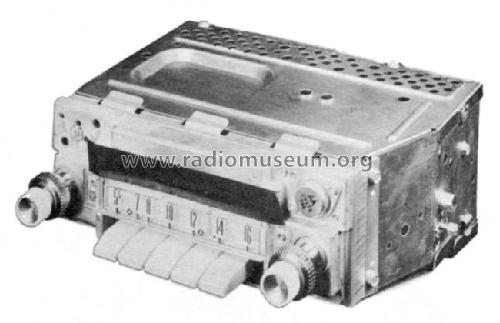

Sams Photofact Folders reference picture.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1958 ? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 4: 12BL6 12AD6 12BL6 12DL8
Semiconductors (the count is only for transistors) 1: 2N176
Main principle Superhet with RF-stage; ZF/IF 262.5 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 84MF Ch= B8A-18805-B [Ford 1958] - Motorola Inc. ex Galvin Mfg.Co
Material Metal case
Shape Chassis only or for «building in»
Notes Negative ground; BC: 540 - 610; This model is electronically identical to 74MF.

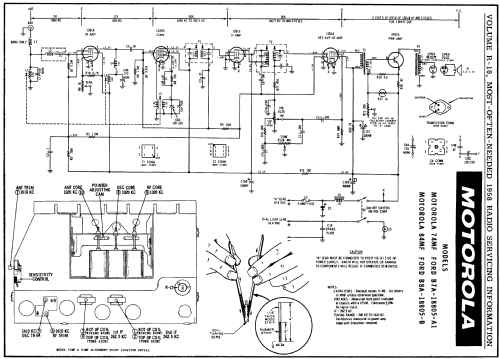

Circuit diagram reference Beitman Radio Diagrams Vol. 18, 1958
Mentioned in - - Manufacturers Literature (Motorola Service Manual 68P560327)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 9-58, Set 411, Folder 8)

Model page created by Egon Penker. See "Data change" for further contributors.
