88FM21 Ch= HS-133

88FM21 Ch= HS-133; Motorola Inc. ex (ID = 270801) Radio

88FM21 Ch= HS-133; Motorola Inc. ex (ID = 270802) Radio

88FM21 Ch= HS-133; Motorola Inc. ex (ID = 271604) Radio

88FM21 Ch= HS-133; Motorola Inc. ex (ID = 271605) Radio

88FM21 Ch= HS-133; Motorola Inc. ex (ID = 271606) Radio

88FM21 Ch= HS-133; Motorola Inc. ex (ID = 271607) Radio

88FM21 Ch= HS-133; Motorola Inc. ex (ID = 271609) Radio

88FM21 Ch= HS-133; Motorola Inc. ex (ID = 271610) Radio

88FM21 Ch= HS-133; Motorola Inc. ex (ID = 271611) Radio

88FM21 Ch= HS-133; Motorola Inc. ex (ID = 270803) Radio
88FM21 Ch= HS-133; Motorola Inc. ex (ID = 1438078) Radio 88FM21 Ch= HS-133; Motorola Inc. ex (ID = 1438081) Radio
88FM21 Ch= HS-133; Motorola Inc. ex (ID = 1477795) Radio
Use red slider bar for more.
88FM21 Ch= HS-133; Motorola Inc. ex (ID = 1438078) Radio
Motorola Inc. ex: 88FM21 Ch= HS-133 [Radio] ID = 1438078 933x1008

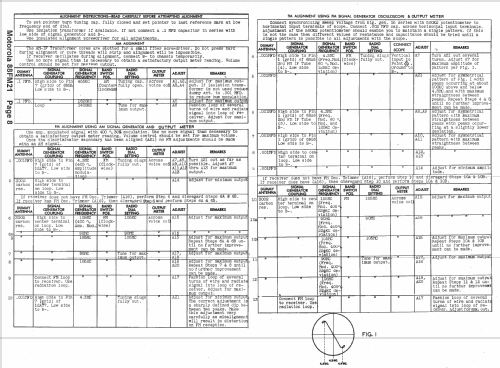

Select picture or schematic to display from thumbnails on the right and click for download.
For model 88FM21 Ch= HS-133, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):

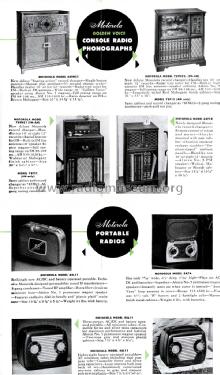

Scanned from the Motorola Folder D1237 for 1949.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 12AT7 6BE6 6BA6 6BA6 19T8 50B5 50B5
Main principle Superheterodyne (common); ZF/IF 455/4300 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 88FM21 Ch= HS-133 - Motorola Inc. ex Galvin Mfg.Co
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 31 x 34.25 x 15.5 inch / 787 x 870 x 394 mm
Notes

 Selenium Rectifier. Brown Mahogany cabinet.

External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (492-15 Set 54 Folder 15)
Literature/Schematics (3) Motorola Folder D1237 for 1949.
