• Year
  • 1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 210867

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

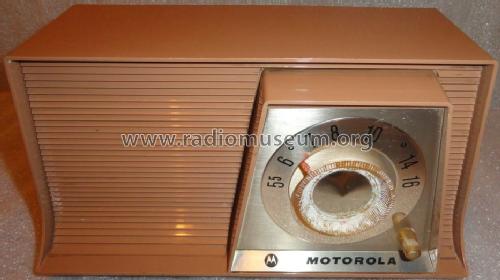

  • Model: A10N Ch= HS-810 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes
  • The Motorola Model A10N is an AC/DC operated 5 Tube AM Receiver. Color = Spice. BC Band Tuning Range: 535 to 1620KHz. This model is part of the A9, A10, C7, C8, C9 and C9-1 series of radios that share a common schematic (C7, C8, C9, C9-1 series also have an electric clock).
  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
