A11A Ch= HS-824

A11A Ch= HS-824; Motorola Inc. ex (ID = 1147458) Radio

A11A Ch= HS-824; Motorola Inc. ex (ID = 1147459) Radio

A11A Ch= HS-824; Motorola Inc. ex (ID = 1147460) Radio

A11A Ch= HS-824; Motorola Inc. ex (ID = 1147461) Radio

A11A Ch= HS-824; Motorola Inc. ex (ID = 1147462) Radio

A11A Ch= HS-824; Motorola Inc. ex (ID = 145723) Radio
A11A Ch= HS-824; Motorola Inc. ex (ID = 1147457) Radio
Use red slider bar for more.
A11A Ch= HS-824; Motorola Inc. ex (ID = 1147457) Radio
Motorola Inc. ex: A11A Ch= HS-824 [Radio] ID = 1147457 873x657
Select picture or schematic to display from thumbnails on the right and click for download.
For model A11A Ch= HS-824, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):

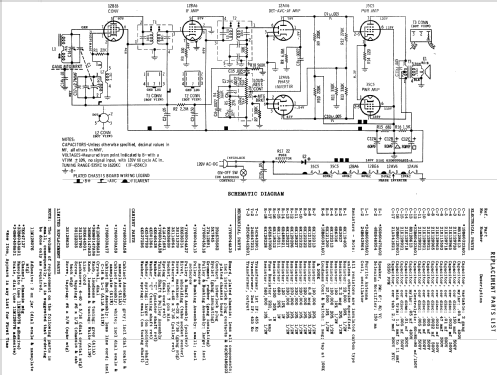

Picture from Motorola datasheet

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BE6 12BA6 12AV6 12AV6 35C5 35C5
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: A11A Ch= HS-824 - Motorola Inc. ex Galvin Mfg.Co
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes The Motorola Model A11A is an AC/DC operated 6 Tube AM Receiver with Selenium Rectifier and Push-Pull output stage. Color = Gray. BC Band Tuning Range: 535 to 1620KHz.
Circuit diagram reference Beitman Radio Diagrams Vol. 21, 1961
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Egon Penker. See "Data change" for further contributors.
