A15J Ch= HS-744
|
|
||||
Year:
1961
|

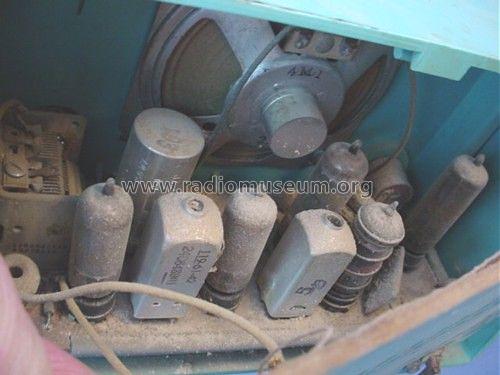

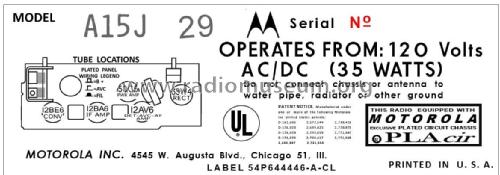

Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 12BE6 12BA6 12AV6 50C5 35W4 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s) | ||||||
|---|---|---|---|---|---|---|---|
| Tuned circuits | 6 AM circuit(s) | ||||||
| Wave bands | Broadcast only (MW). | ||||||
| Details | |||||||
| Power type and voltage | AC/DC-set / Either AC: 60 cycles, 120V or DC: 120 Volt | ||||||
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm | ||||||
| Power out | |||||||
| from Radiomuseum.org | Model: A15J Ch= HS-744 - Motorola Inc. ex Galvin Mfg.Co | ||||||
| Material | Plastics (no bakelite or catalin) | ||||||
| Shape | Tablemodel without push buttons, Mantel/Midget/Compact up to 14 | ||||||
| Dimensions (WHD) | 230 x 160 x 105 mm / 9.1 x 6.3 x 4.1 inch | ||||||
| Notes | The Motorola A15J is an AC/DC operated 5 tube AM receiver. The AM tuning range is 535 - 1620kHz. The following models use the same schematic and cabinet but have different cabinet colors:
The Motorola service manual has service information for the following models: A15, A16, A17, A18, A19 series and the C15, C16, C17, C18, C19, C20 series. The A series are radio's without clocks, while the C series are radio's with clocks. WARNING: When servicing this radio, an isolation transformer should be used between the power line and the radio. |
||||||
| Net weight (2.2 lb = 1 kg) | 1.1 kg / 2 lb 6.8 oz (2.423 lb) | ||||||
| Circuit diagram reference | Beitman Radio Diagrams Vol. 22, 1962 | ||||||
| Literature/Schematics (1) | - - Manufacturers Literature (Motorola Datasheet 68P60011A71 Dated 6-61) | ||||||
| Literature/Schematics (2) | Beitman Radio Diagrams, Vol. 22, 1962 (Page 65) | ||||||
| Literature/Schematics (3) | Photofact Folder, Howard W. SAMS (Set 491, folder 9) |
Model page created by Egon Penker. See "Data change" for further contributors.
